AXOR CitterioKitchen Faucet Select 2-Spray Pull-Out, 1.75 GPM

Model no. 39863001
Please try again.
Article features
- Swivel range 110° / 150°
- Laminar spray, needle spray
- Toggle spray diverter
- Select button provides convenient start/stop of the water flow at the sprayhead
- MagFit magnetic sprayhead docking
- Deck mounted
- Flow: 1.75 GPM (6.6 L/Min)
- Ceramic cartridge
- G ⅜ compression
- Integrated double backflow prevention
- Extension length up to 19 5/8” (50cm)
Download Center
Certificates

Installation information
Scale drawing
Information
Please always observe the safety and installation information for your product. You find these details within the assembly instructions.Spare parts for build year 07/19
To the spare parts catalogItem no. | DescriptionArticle no.Description and article no. |
---|
1 | spout cpl.92583000 |
2 | set of lever collars98365000 |
3 | O-ring 21x2,598211000 |
4 | O-ring 8x298112000 |
5 | handspray93410001 |
6 | cover92566000 |
7 | O-Ring 14x1,598201000 |
8 | nut92567000 |
9 | shut off unit98463000 |
10 | spray former93342000 |
11 | service tool95910000 |
12 | hollow set screw M6x10 DIN 91696029000 |
13 | screw cover96338000 |
14 | flange98603000 |
15 | nut96461000 |
16 | O-Ring 32x298193000 |
17 | cartridge, assy92730000 |
18 | seal95008000 |
19 | O-ring 40x392634000 |
20 | weight92500000 |
21 | hose 1,50 m92569000 |
22 | squeezing connection96099000 |
23 | connection hose 600 mm M10x192568000 |
24 | support97523000 |
25 | fixing set (Ø 34)95049000 |
26 | lever collar97548000 |
27 | connection hose 900 mm M8x0,75 G3/895372000 |
28 | O-ring 7x1,598422000 |
29 | non return valve DW 1096456000 |
30 | filter packing95291000 |
31 | adapter for connection hose88802000 |
Innovative technologies
Saving resources with pleasure
Convenience at the touch of a button
For more space at the kitchen sink
Flexibility at the kitchen sink
QuickClean: Less limescale, more pleasure
EcoRight
Saving resources with pleasure
hansgrohe standard taps are equipped with our EcoSmart technology to save water and energy – since 2010. While enjoying the full water experience, it consumes max. 5 l/min. Good for a conscious consumption of water and energy.
Select
Convenience at the touch of a button
Fans of user-friendliness can now conveniently start and stop the flow of water at the touch of a button. For accurate, ergonomic and easy water controls that can be operated with the back of the hand or an elbow.
ComfortZone
For more space at the kitchen sink
Used to describe the generous space created between the kitchen tap and the sink - vertically and horizontally. These high-quality taps are highly user-friendly and have a flexible swivel range. For maximum freedom of movement.
Pull-out
Flexibility at the kitchen sink
More comfort and room to move: Pull-out sprays or pull-out spouts expand the operating radius around the kitchen sink to take water to exactly where it’s needed in just one motion.
QuickClean
QuickClean: Less limescale, more pleasure
Who likes cleaning? Limescale deposits and dirt disappear in an instant. You can rub off the flexible silicone lamellae or nubs with your finger. This takes no time at all and minimises the cleaning effort.
Spray Types


LaminarSpray
Crystal-clear spray type with no added air for the sink. This spray is a great help when going through the day-to-day kitchen routine, e.g. quickly filling large pots or bowls. Efficient with very little splashback.

ShowerSpray
Resource-saving shower spray at the sink. Whether fruit or vegetables, fish or meat, the soft spray helps to gently yet efficiently clean food and other items.

Manufacturer’s guarantee
Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
We endeavour to always provide up-to-date, complete information on our website. However, we do not assume any liability for the suitability of the information for particular uses.
Similar products

AXOR Citterio

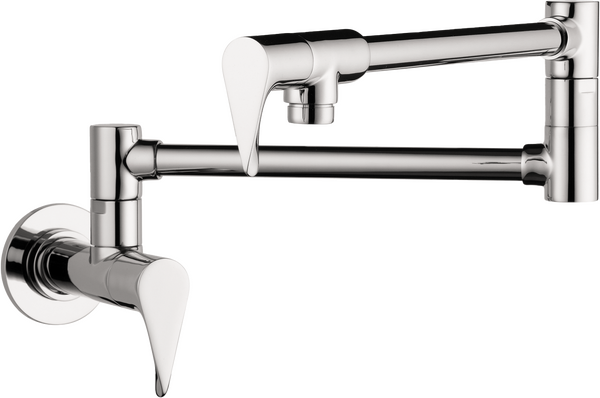

Pot Filler, Wall-Mounted
Model no. 39834001

AXOR Citterio
Bar Faucet, 1.5 GPM
Model no. 39851001
You may also like

AXOR Citterio
Wallbar 36"
Model no. 27831000

AXOR Citterio

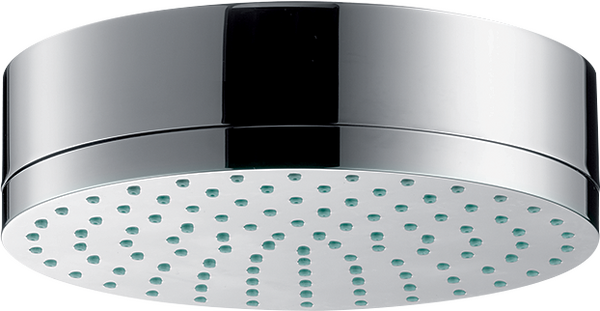

Showerhead 180 1-Jet, 2.5 GPM
