AXOR EdgeSingle-Hole Faucet 190, 1.2 GPM
Model no. 46020001
Product saved for 30 days.To the product comparison
The article could not be saved.
Please try again.
Please try again.
Article features
- Handle variant: Lever
- Spray modes: normal spray
- Flow: 1.2 GPM (4.5 L/Min)
- Ceramic cartridge
- Does not include: Pop-up assembly
Download Center
Download all files
Download all files
Certificates

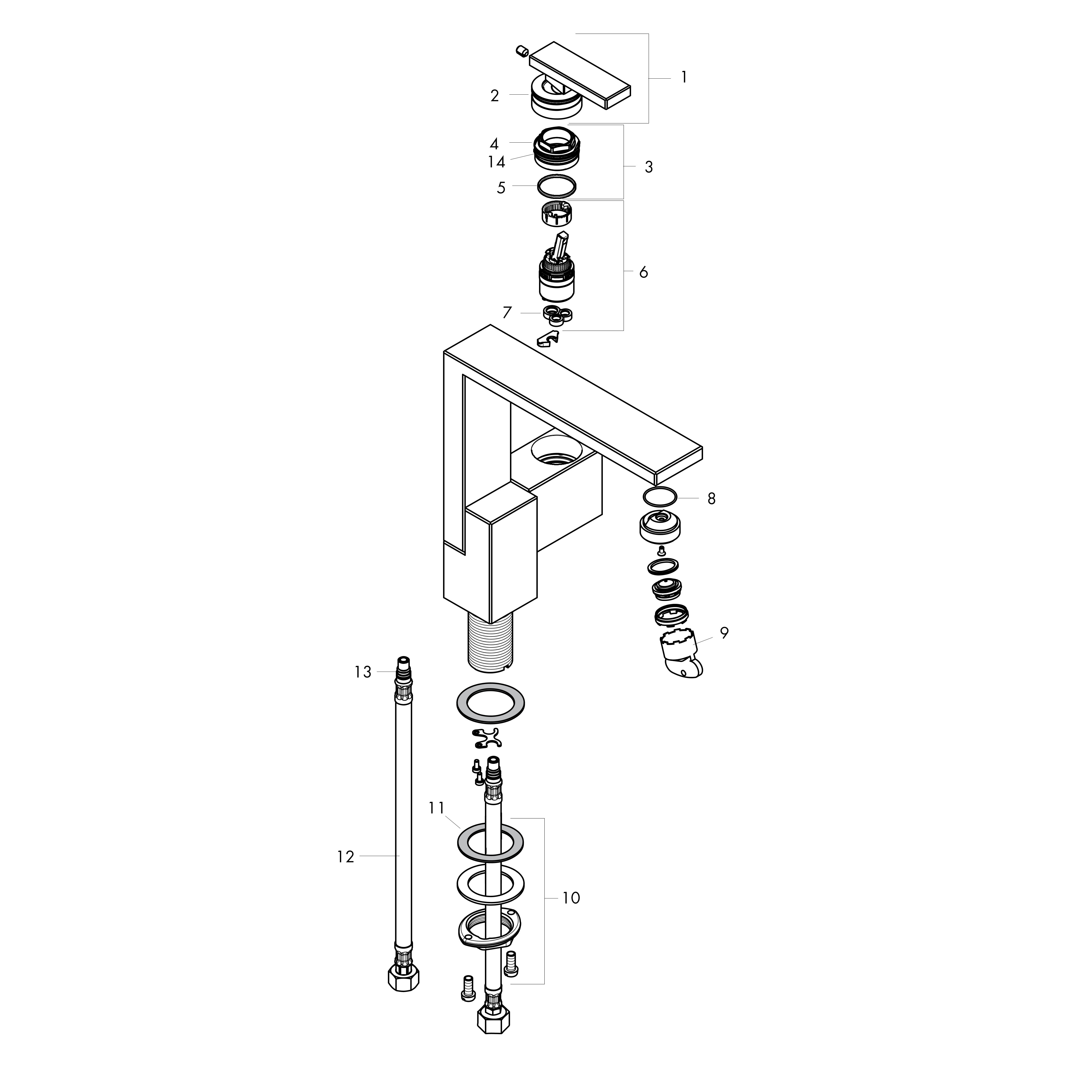

Spare parts for build year 01/20
| Item no. |
|---|
| 1 | handle93424000 |
| 2 | O-ring 33x1,598164000 |
| 3 | nut92926000 |
| 4 | O-ring 29x298391000 |
| 5 | O-ring 25x1,598146000 |
| 6 | cartridge, assy92900000 |
| 7 | seal93383000 |
| 8 | O-ring 22x1,298397000 |
| 9 | service tool95661000 |
| 10 | fixing set (Ø 32)13961000 |
| 11 | lever collar97548000 |
| 12 | connection hose 23½" M8x0,75 3/8"98600001 |
| 13 | O-ring 7x1,598422000 |
Innovative technologies
Excellent user comfort
Greater freedom of movement when washing hands and hair or filling containers: The more precise the fit of the tap, the greater the convenience in the daily use of water. We call this individual use space between the tap and the ceramics the ComfortZone.
Saving resources with pleasure
hansgrohe standard taps are equipped with our EcoSmart technology to save water and energy – since 2010. While enjoying the full water experience, it consumes max. 5 l/min. Good for a conscious consumption of water and energy.
ComfortZone
Excellent user comfort
Greater freedom of movement when washing hands and hair or filling containers: The more precise the fit of the tap, the greater the convenience in the daily use of water. We call this individual use space between the tap and the ceramics the ComfortZone.
EcoRight
Saving resources with pleasure
hansgrohe standard taps are equipped with our EcoSmart technology to save water and energy – since 2010. While enjoying the full water experience, it consumes max. 5 l/min. Good for a conscious consumption of water and energy.
Manufacturer’s guarantee
Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
We endeavour to always provide up-to-date, complete information on our website. However, we do not assume any liability for the suitability of the information for particular uses.
