AXOR OneWall-Mounted Single-Handle Faucet Select, 1.2 GPM
Model no. 48112001
Please try again.
Article features
- Handle variant: Select
- Spray modes: normal spray
- Flow: 1.2 GPM (4.5 L/Min)
- Select cartridge for easy, intuitive operation: Push handle to turn water on and off, and turn to adjust temperature
- Does not include: Pop-up assembly
Download Center
Planning data
Technical drawings
Instructions
Certificates
Required Accessories

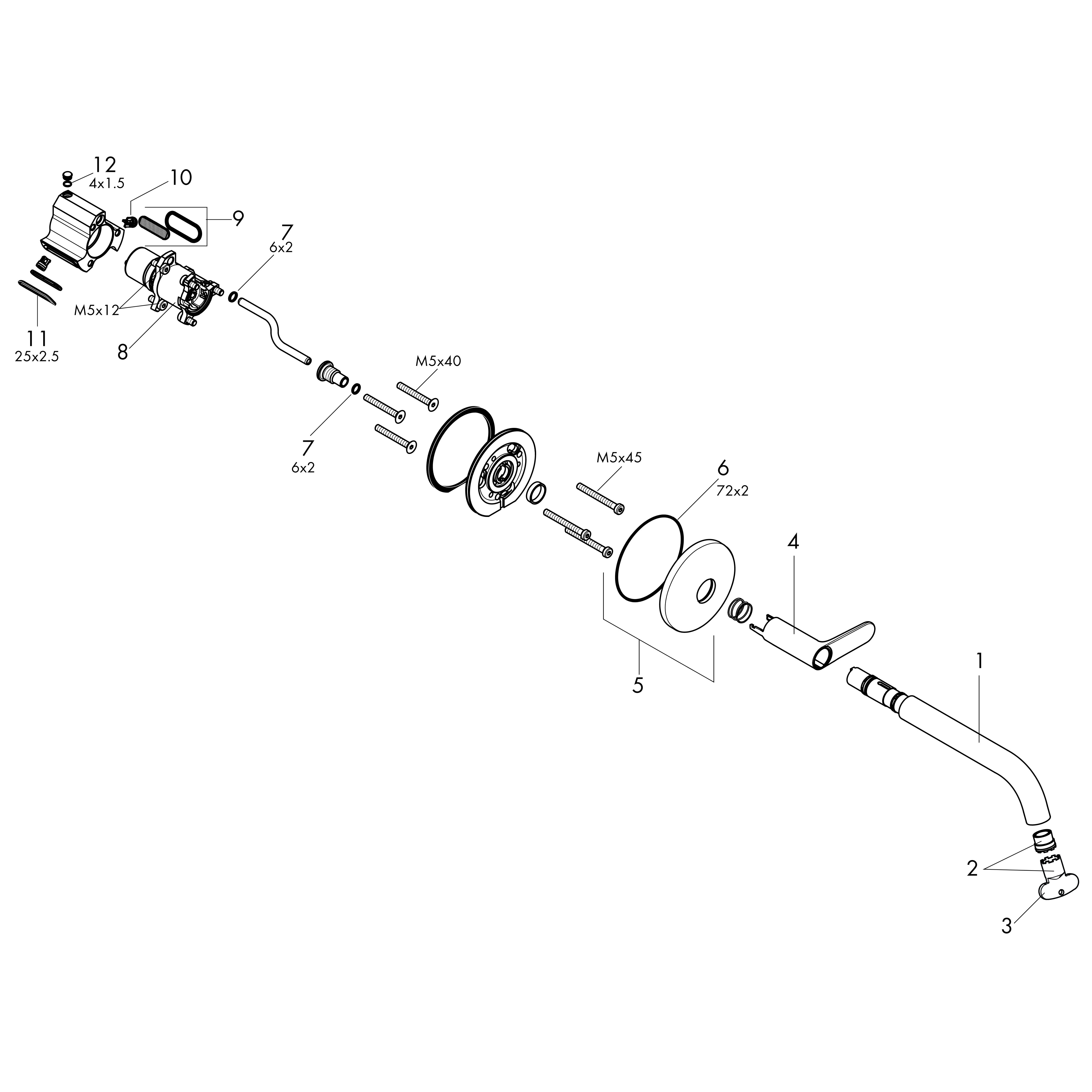

Spare parts for build year 10/21
| Item no. |
|---|
| a | escutcheon Ø 80 mm13611000 |
| b | escutcheon height = 36 mm (when wall is not deep enough).13610000 |
| c | extension 25 mm13609000 |
| 1 | spout cpl.94313000 |
| 2 | aerator M16,5x1 (4,5 l/min)92875000 |
| 3 | special tool98987000 |
| 4 | handle94314000 |
| 5 | escutcheon Ø 80 mm94315000 |
| 6 | O-ring 72x298395000 |
| 7 | O-ring 6x298458000 |
| 8 | cartridge, assy94317000 |
| 9 | filter94316000 |
| 10 | non return valve93250000 |
| 11 | O-ring 25x2,592146000 |
| 12 | O-ring 4x1,593463000 |
Innovative technologies
More pleasure, more efficiency
Saving resources with pleasure
Select for faucets
AirPower
More pleasure, more efficiency
Mixes generous quantities of air into the water. The enriched droplets are luxurious, light and soothing on the skin and cause less splash in the wash basin. For a more efficient use of the precious resource that is water.
EcoRight
Saving resources with pleasure
hansgrohe standard taps are equipped with our EcoSmart technology to save water and energy – since 2010. While enjoying the full water experience, it consumes max. 5 l/min. Good for a conscious consumption of water and energy.
Select
Select for faucets
Fans of intuitive design can start, pause and stop the flow of water at the touch of a button. The Select push button simplifies routines such as shaving or brushing teeth and can also be operated using the back of the hand or an elbow.
