AXOR OneWidespread Faucet Select 170, 1.2 GPM
Model no. 48070001
Please try again.
Article features
- Handle variant: Select
- Swivel range 120°
- Spray modes: normal spray
- Flow: 1.2 GPM (4.5 L/Min)
- Right handle: Select cartridge with temperature control
- Left handle: volume control
- Does not include: Pop-up assembly
Download Center
Technical drawings
Instructions
Certificates

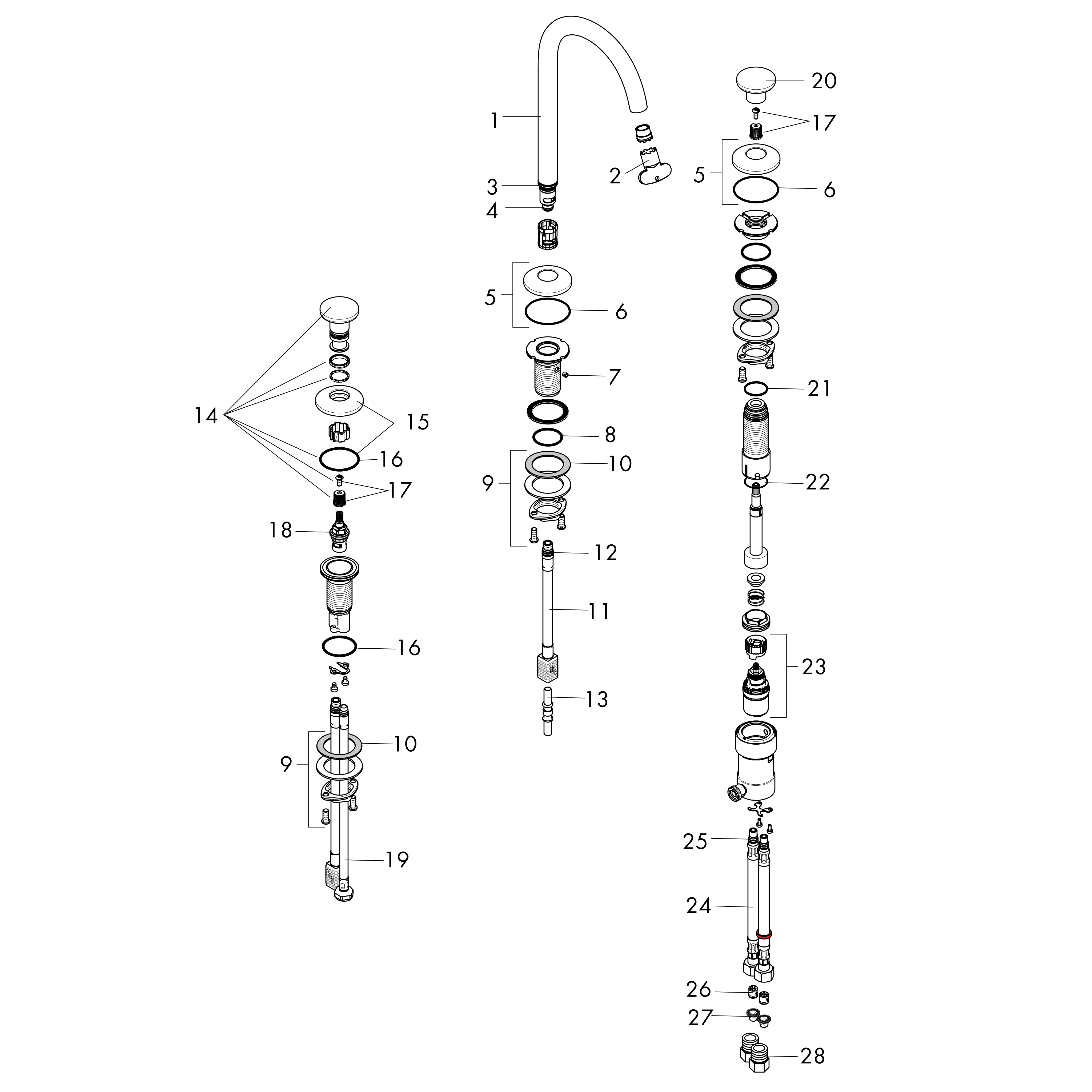

Spare parts for build year 08/21
| Item no. |
|---|
| 1 | spout cpl.94100000 |
| 2 | special tool98987000 |
| 3 | O-ring 18x1,598231000 |
| 4 | O-ring 9x1,598117000 |
| 5 | escutcheon93998000 |
| 6 | O-Ring 46x298195000 |
| 7 | hollow set screw M5x598446000 |
| 8 | O-ring 28x2,598209000 |
| 9 | null92909000 |
| 10 | lever collar97548000 |
| 11 | null92914000 |
| 12 | O-ring 8x1,7597827000 |
| 13 | coupling set94264000 |
| 14 | handle94263000 |
| 15 | escutcheon for handle94162000 |
| 16 | null92907000 |
| 17 | handle fixing set98932000 |
| 18 | shut off unit right closing98817000 |
| 19 | connection hose 450 mm M8x0,75 G3/897206000 |
| 20 | handle93997000 |
| 21 | O-Ring 22x298185000 |
| 22 | O-ring 23x1,592287000 |
| 23 | cartridge, assy92529000 |
| 24 | connection hose 450 mm M8x0,75 G3/893405000 |
| 25 | O-ring 7x1,598422000 |
| 26 | non return valve DW 1096456000 |
| 27 | filter packing95291000 |
| 28 | adapter for connection hose88802000 |
Innovative technologies
More pleasure, more efficiency
Excellent user comfort
Saving resources with pleasure
Select for faucets
AirPower
More pleasure, more efficiency
Mixes generous quantities of air into the water. The enriched droplets are luxurious, light and soothing on the skin and cause less splash in the wash basin. For a more efficient use of the precious resource that is water.
ComfortZone
Excellent user comfort
Greater freedom of movement when washing hands and hair or filling containers: The more precise the fit of the tap, the greater the convenience in the daily use of water. We call this individual use space between the tap and the ceramics the ComfortZone.
EcoRight
Saving resources with pleasure
hansgrohe standard taps are equipped with our EcoSmart technology to save water and energy – since 2010. While enjoying the full water experience, it consumes max. 5 l/min. Good for a conscious consumption of water and energy.
Select
Select for faucets
Fans of intuitive design can start, pause and stop the flow of water at the touch of a button. The Select push button simplifies routines such as shaving or brushing teeth and can also be operated using the back of the hand or an elbow.
