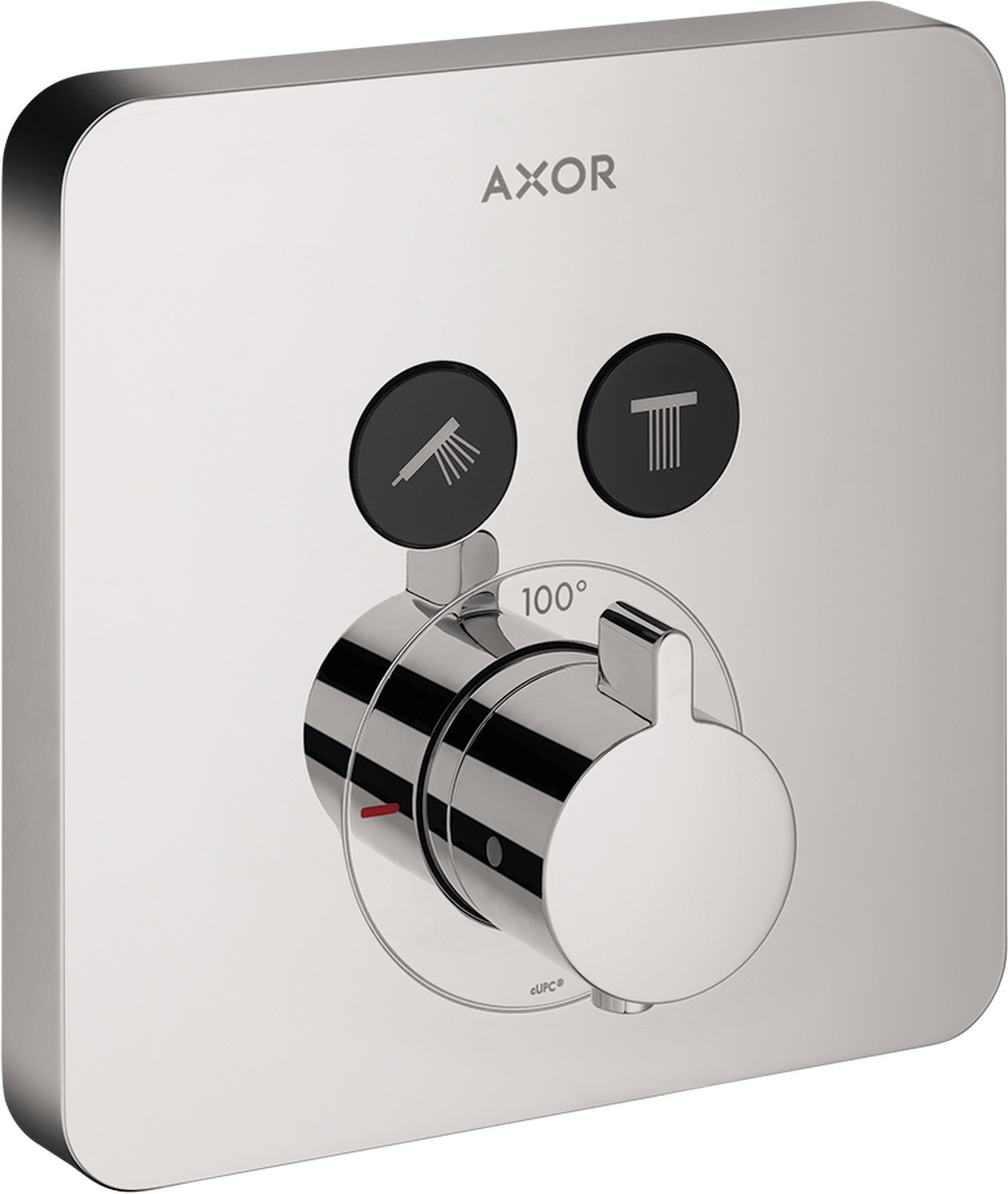

AXOR ShowerSolutionsThermostatic Trim SoftCube for 2 Functions
Model no. 36707001
List price (U.S. dollars) is shown for comparison only. The actual retail price may be different from the price shown.
Product saved for 30 days.To the product comparison
The article could not be saved.
Please try again.
Please try again.
Article features
- Thermostatic cartridge,
- Select push-button on/off control for 2 outlets
- Outlets may be operated simultaneously
- Flow: 8.0 GPM (30.3 L/Min) / 2.0 GPM (7.6 L/Min)
- Optimized for water-efficient shower products
- Anti-scald 100° safety stop
- Trim comes with Select buttons: handshower and Rain
- Optional accessory to limit total flow to 2.0 GPM @ 80 psi where required
Download Center
Planning data
Technical drawings
Instructions
Certificates
Required Accessories
Optional Accessories
Spare parts for build year 07/21
| Item no. |
|---|
| k | brake disc92498000 |
| l | set of fixing screws97747000 |
| a | compensation set 1°95521000 |
| b | symbol head shower Rain large93571610 |
| c | symbol head shower Rain small93572610 |
| d | symbol handshower93573610 |
| e | symbol Flood jet93574610 |
| f | symbol Whirl93575610 |
| g | symbol Mono93576610 |
| h | symbol tub93577610 |
| i | symbol body shower93578610 |
| j | symbol ON/OFF93579610 |
| m | set of screws93244000 |
| 1 | non return valve (pressure-resistant up to 2 MPa)92594000 |
| 2 | non return valve97980000 |
| 3 | noise reduction94073000 |
| 4 | O-ring 16x298133000 |
| 5 | O-ring 36x298156000 |
| 6 | set of screws96525000 |
| 7 | shut off unit95758000 |
| 8 | nut98368000 |
| 9 | Select-adapter92219000 |
| 10 | nut and flange92696000 |
| 11 | thermostat cartridge98282000 |
| 12 | cartridge for exchanged connections92373000 |
| 13 | O-ring 20x1,598197000 |
| 14 | O-ring 25x1,598146000 |
| 15 | O-ring 25x2,592146000 |
| 16 | nut98913000 |
| 17 | holder for escutcheon98793000 |
| 18 | set of fixing screws96454000 |
| 19 | escutcheon 170 / 170 mm92549000 |
| 20 | set of symbols92544610 |
| 21 | O-Ring 48x395508000 |
| 23 | handle for thermostat92215001 |
| 24 | sleeve92216000 |
| 25 | fit-up aid92540000 |
| 26 | extension 22 mm98860000 |
| 27 | extension 25 mm13595000 |
Innovative technologies
Select: Enjoy water at the touch of a button
The Select button facilitates daily routines in the bathroom. At a press of a button, water flows or stops. When showering, the user-friendly button changes the jet type or switches from the overhead to the hand shower.
Select
Select: Enjoy water at the touch of a button
The Select button facilitates daily routines in the bathroom. At a press of a button, water flows or stops. When showering, the user-friendly button changes the jet type or switches from the overhead to the hand shower.
