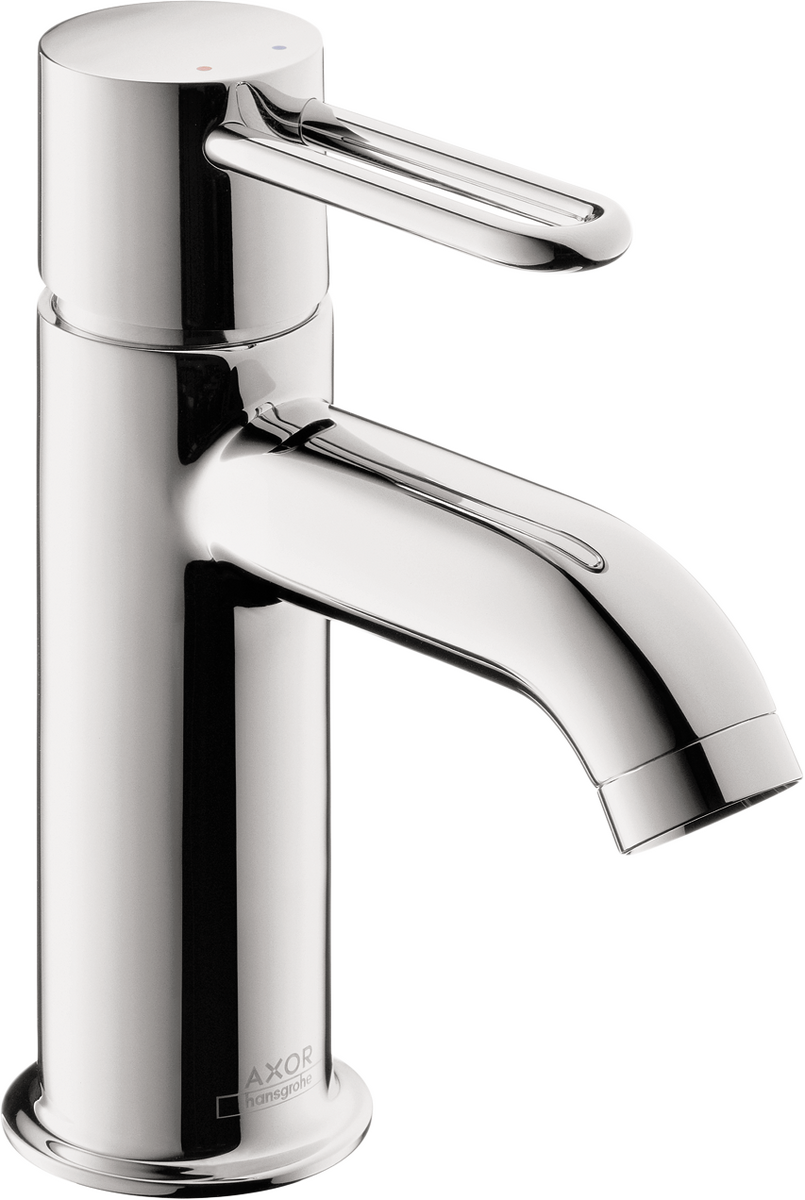

AXOR UnoSingle-Hole Faucet 90 with Pop-Up Drain, 1.2 GPM
Model no. 38020001
Please try again.
Article features
- Handle variant: Lever
- Spray modes: aerated spray
- Flow: 1.2 GPM (4.5 L/Min)
- Ceramic cartridge
- Includes pop-up drain
Download Center
Technical drawings
Certificates
Optional Accessories
Spare parts for build year 07/16
| Item no. |
|---|
| a | pop up waste88509000 |
| 1 | handle38094000 |
| 2 | screw cover96762000 |
| 3 | hollow set screw M6x10 DIN 91696029000 |
| 4 | flange96763000 |
| 5 | nut97209000 |
| 6 | cartridge, assy95646001 |
| 7 | seal95008000 |
| 8 | aerator M24x1 (4,5 l/min)92878000 |
| 9 | fixing set (Ø 32)13961000 |
| 10 | connection hose 18½" M8x0,75 3/8"96321001 |
| 11 | pull rod96923000 |
| 12 | O-Ring 30x298186000 |
| 13 | O-ring 35x292604000 |
| 14 | lever collar97548000 |
| 15 | flat seal98749000 |
| 16 | adapter for cartridge98750000 |
Innovative technologies
Excellent user comfort
Saving resources with pleasure
QuickClean: Less limescale, more pleasure
ComfortZone
Excellent user comfort
Greater freedom of movement when washing hands and hair or filling containers: The more precise the fit of the tap, the greater the convenience in the daily use of water. We call this individual use space between the tap and the ceramics the ComfortZone.
EcoRight
Saving resources with pleasure
hansgrohe standard taps are equipped with our EcoSmart technology to save water and energy – since 2010. While enjoying the full water experience, it consumes max. 5 l/min. Good for a conscious consumption of water and energy.
QuickClean
QuickClean: Less limescale, more pleasure
Who likes cleaning? Limescale deposits and dirt disappear in an instant. You can rub off the flexible silicone lamellae or nubs with your finger. This takes no time at all and minimises the cleaning effort.
Manufacturer’s guarantee
Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
