hansgrohe Commercial

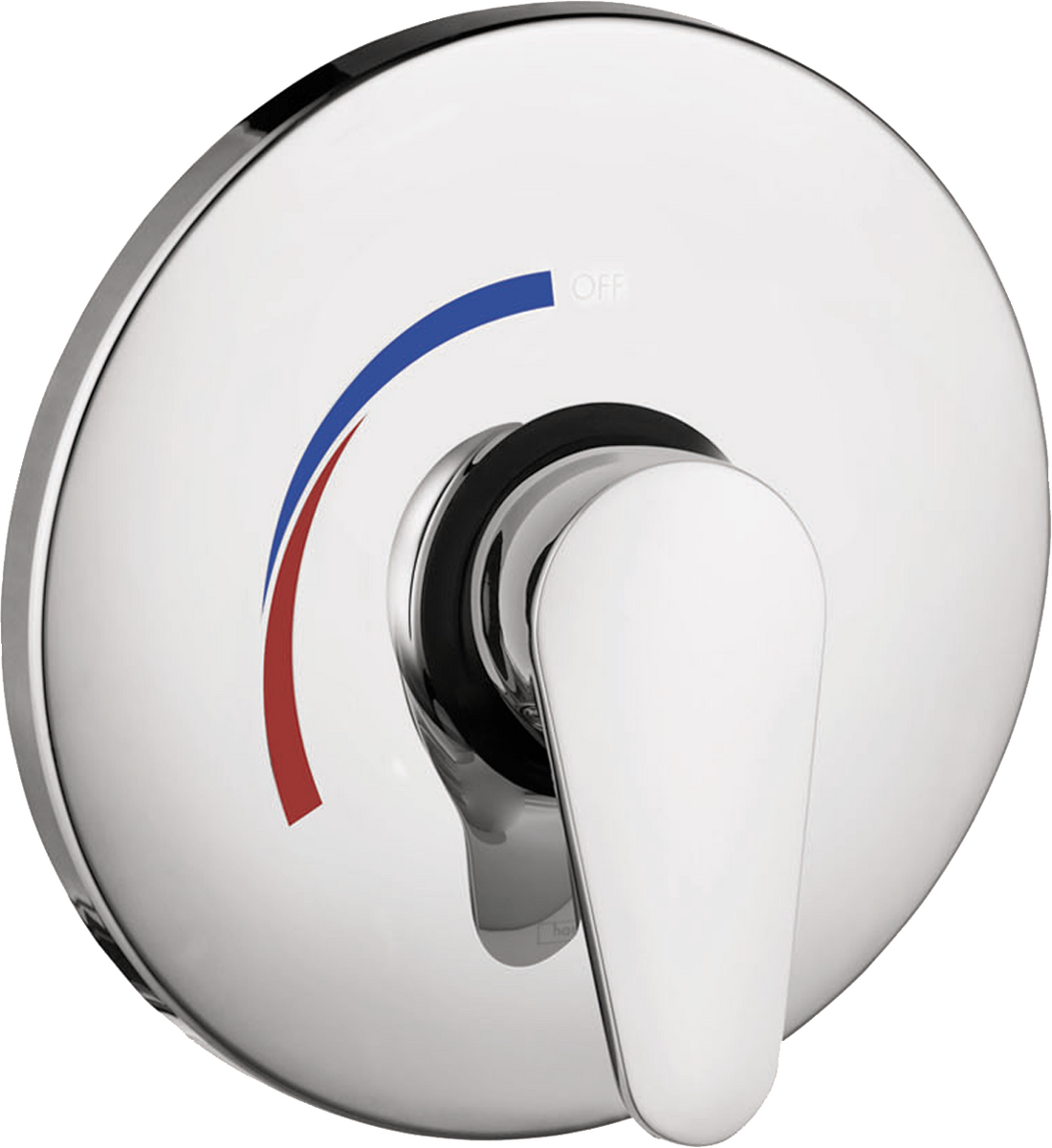

Pressure Balance Trim E

Pressure Balance Trim E
 View in AR
 360° view

Model no. 04496000

Article features

  • Maximum flow rate at 60 psi: 5.44 GPM
  • Connection type: rough

Download Center

Technical drawings

Instructions

Download all files

Certificates

ADA Compliant Products

 Products displaying "ADA" will meet actuation force requirements outlined in the Americans with Disabilities ACT and ICC/ ANSI A117.1

cUPC® Listed

 cUPC® Listed products comply with applicable sections of the Uniform Plumbing Code (UPC®), National Plumbing Code of Canada, and International Plumbing Code (IPC®), as well as applicable sections of IAPMO Z124.1.2-2005 / CSA B45.5-2002

Installation information

Scale drawing

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.
Information
Please note that other products are required to install the product.

Required Accessories

Rough, with Service Stops, ¾"
hansgrohe iBox universal

Rough, with Service Stops, ¾"

Optional Accessories

Shallow Extension Set, Thermostatic/Pressure Balance Trim, ⅞"
hansgrohe

Shallow Extension Set, Thermostatic/Pressure Balance Trim, ⅞"
1" Extension Kit, iBox Universal Plus Rough
hansgrohe

1" Extension Kit, iBox Universal Plus Rough

Manufacturer’s guarantee

Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.



We endeavour to always provide up-to-date, complete information on our website. However, we do not assume any liability for the suitability of the information for particular uses.
