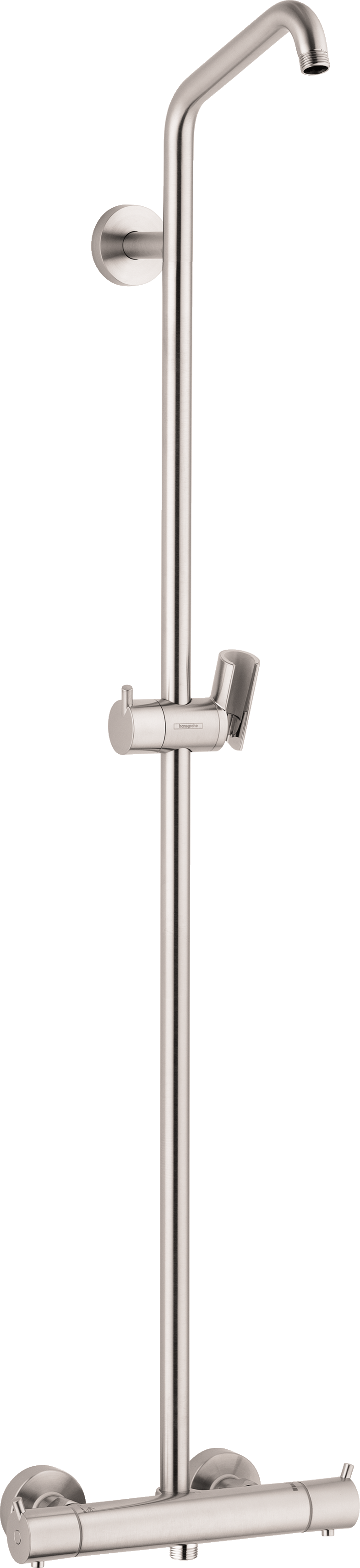

hansgrohe CromaShowerpipe without Shower Components
Model no. 04536820
Article features
- Height-adjustable hand shower holder
- Anti-scald 100° safety stop
- Integrated volume control/diverter for 2 functions
- Outlets may not be operated simultaneously
- Exposed installation
- Thermostatic cartridge
- Does not include: Showerhead, hand shower, hose
Download Center
Technical drawings
Instructions
Certificates
cUPC® Listed
Link text
cUPC® Listed products comply with applicable sections of the Uniform Plumbing Code (UPC®), National Plumbing Code of Canada, and International Plumbing Code (IPC®), as well as applicable sections of IAPMO Z124.1.2-2005 / CSA B45.5-2002Installation information
Information
Please always observe the safety and installation information for your product. You find these details within the assembly instructions.Required Accessories
Spare parts for build year 01/16
| Item no. |
|---|
| 1 | mounting set96179000 |
| 2 | tile-matching-disk95239820 |
| 3 | wall flange95688000 |
| 4 | escutcheon Ø 60 mm95692XXX |
| 5 | shower arm95137000 |
| 6 | pipe 1450 mm96770820 |
| 7 | support, assy97651820 |
| 8 | escutcheon98340820 |
| 9 | isolation valve98341820 |
| 10 | filter packing96922000 |
| 11 | non return valve97980000 |
| 12 | set of nuts96157820 |
| 13 | shut off unit with selector98283000 |
| 14 | nut98913000 |
| 15 | safety set for temperature control98916000 |
| 16 | handle98915XXX |
| 17 | non return valve96737000 |
| 18 | thermostat cartridge98282000 |
Manufacturer’s guarantee
Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
We endeavour to always provide up-to-date, complete information on our website. However, we do not assume any liability for the suitability of the information for particular uses.
