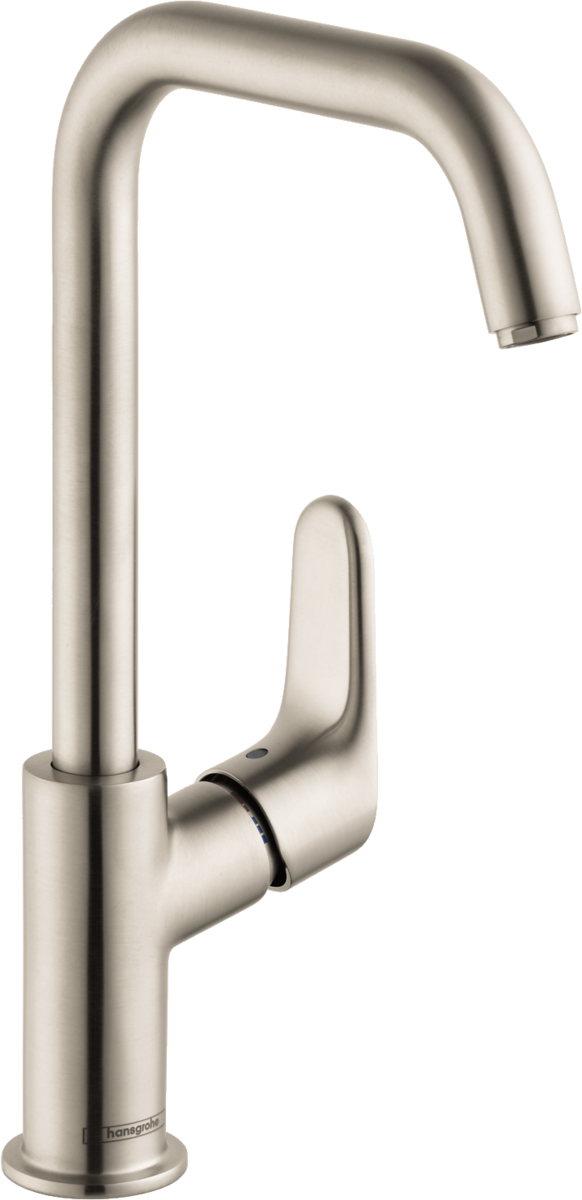

hansgrohe FocusSingle-Hole Faucet 240 with Swivel Spout and Pop-Up Drain, 1.2 GPM
Model no. 31609821
Please try again.
Article features
- Handle variant: Lever
- Swivel range 120°
- Spray modes: aerated spray
- Flow: 1.2 GPM (4.5 L/Min)
- Ceramic cartridge
- Includes pop-up drain
- Bottom-side at the base body (not suitable for wash bowls)
Download Center
Technical drawings
Instructions
Certificates
Spare parts for build year 07/16
| Item no. |
|---|
| 1 | spout cpl.95856820 |
| 2 | aerator M18x1 (4,5 l/min)92885820 |
| 3 | O-ring 11x298127000 |
| 4 | handle95855820 |
| 5 | screw cover96338000 |
| 6 | flange95493820 |
| 7 | nut95178000 |
| 8 | O-Ring 22x298185000 |
| 9 | cartridge, assy95973001 |
| 10 | locking screw for handle95140000 |
| 11 | seal98865000 |
| 12 | screw cover95181000 |
| 13 | fixing set (Ø 32)13961000 |
| 14 | connection hose 18½" M8x0,75 3/8"96321001 |
| 15 | pull rod96657820 |
| 16 | lever collar92849000 |
Innovative technologies
Excellent user comfort
Saving resources with pleasure
QuickClean: Less limescale, more pleasure
ComfortZone
Excellent user comfort
Greater freedom of movement when washing hands and hair or filling containers: The more precise the fit of the tap, the greater the convenience in the daily use of water. We call this individual use space between the tap and the ceramics the ComfortZone.
EcoRight
Saving resources with pleasure
hansgrohe standard taps are equipped with our EcoSmart technology to save water and energy – since 2010. While enjoying the full water experience, it consumes max. 5 l/min. Good for a conscious consumption of water and energy.
QuickClean
QuickClean: Less limescale, more pleasure
Who likes cleaning? Limescale deposits and dirt disappear in an instant. You can rub off the flexible silicone lamellae or nubs with your finger. This takes no time at all and minimises the cleaning effort.
Manufacturer’s guarantee
Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
