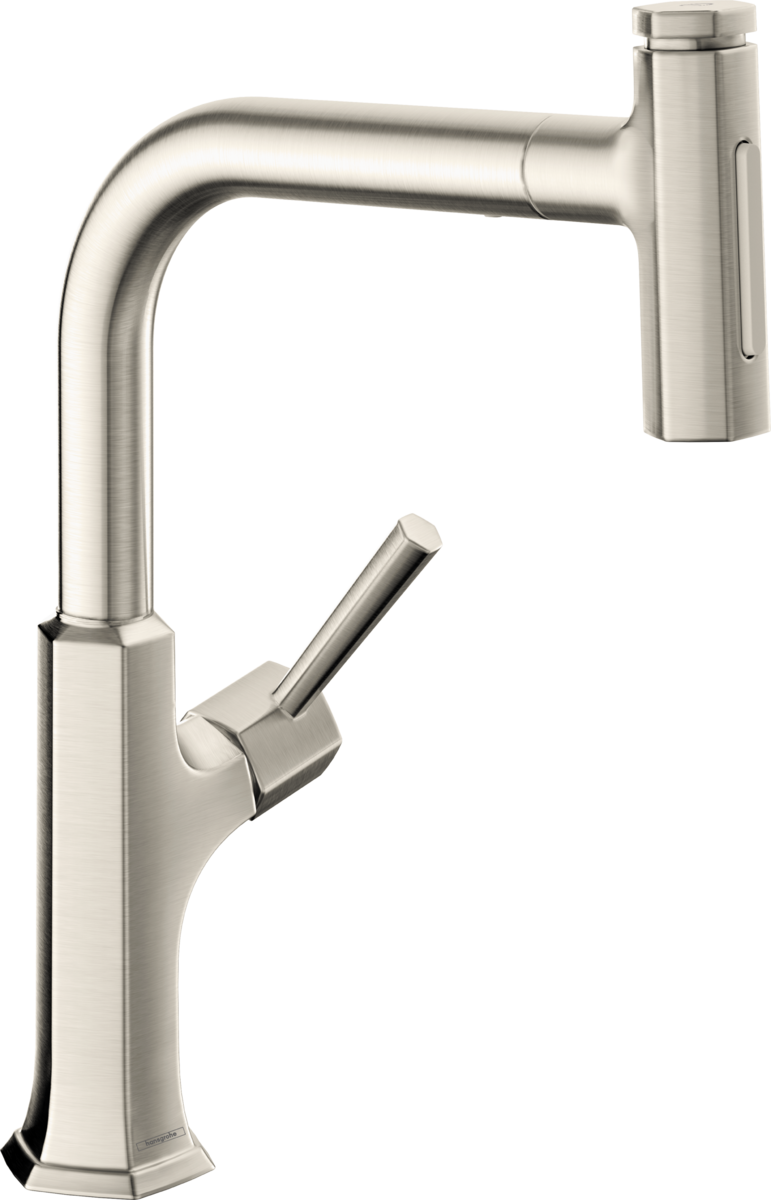

hansgrohe Locarno SelectHighArc Kitchen Faucet, 2-Spray Pull-Out with sBox, 1.75 GPM
Model no. 04828800
Please try again.
Article features
- Swivel range 150°
- Normal spray, needle spray
- Toggle spray diverter
- Select button provides convenient start/stop of the water flow at the sprayhead
- MagFit magnetic sprayhead docking
- Deck mounted
- Flow: 1.75 GPM (6.6 L/Min)
- Ceramic cartridge
- Integrated double backflow prevention
- SBox for smooth, protected hose guidance in the cabinet
- Extension length up to 30" (76cm)
- 1 ⅜" Mounting hole required
Download Center
Planning data

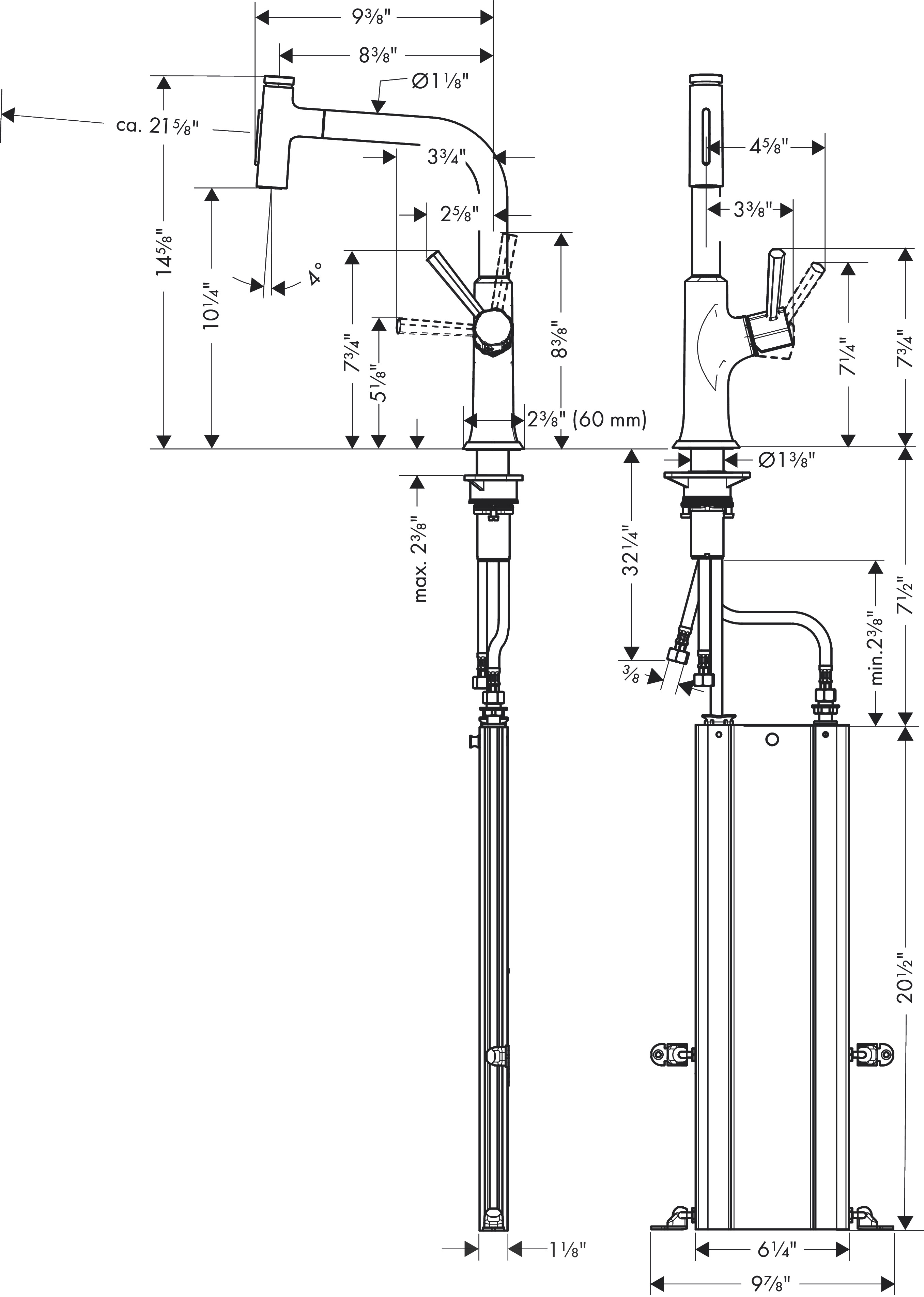

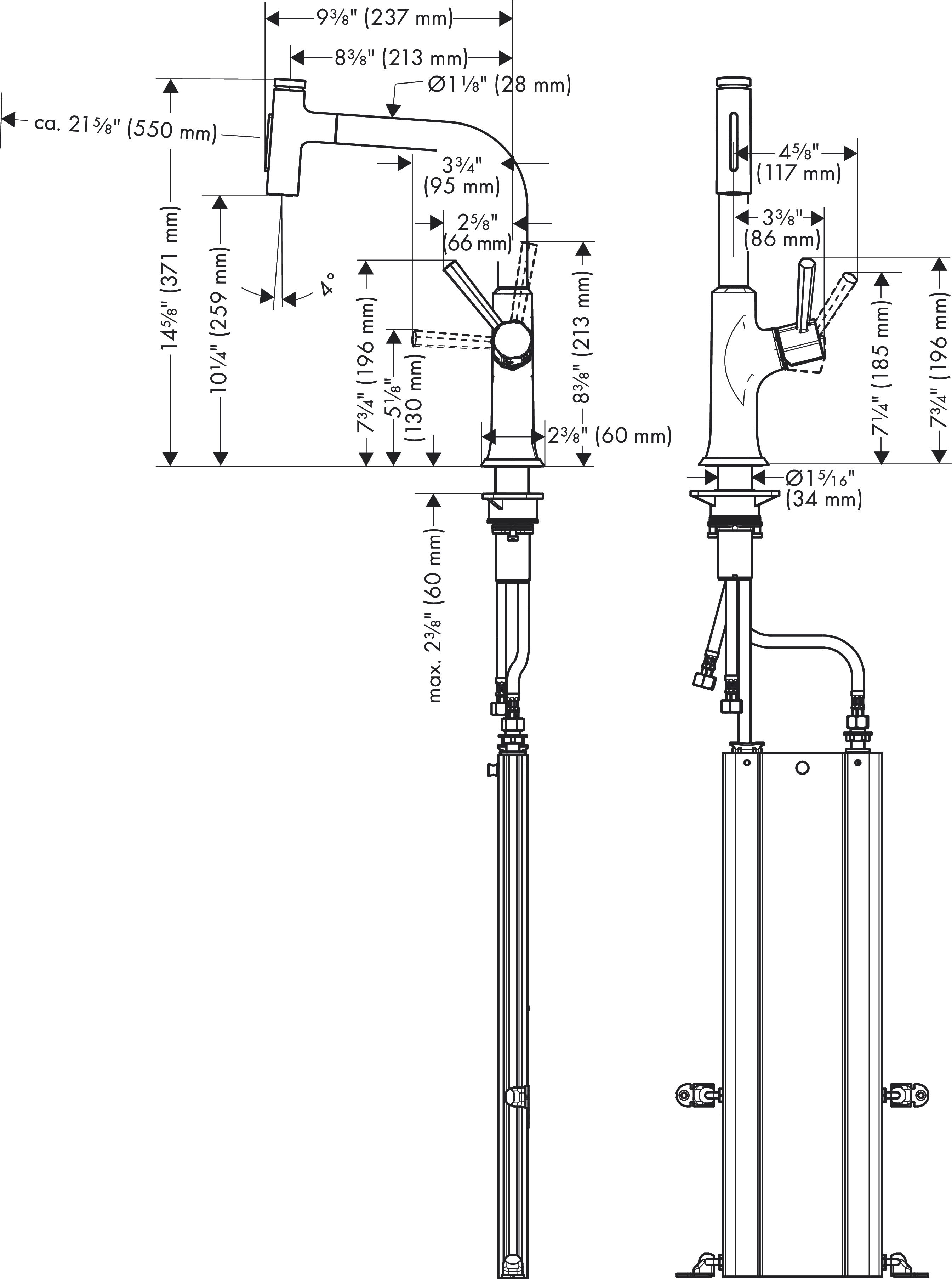

Technical drawings
Instructions
Certificates

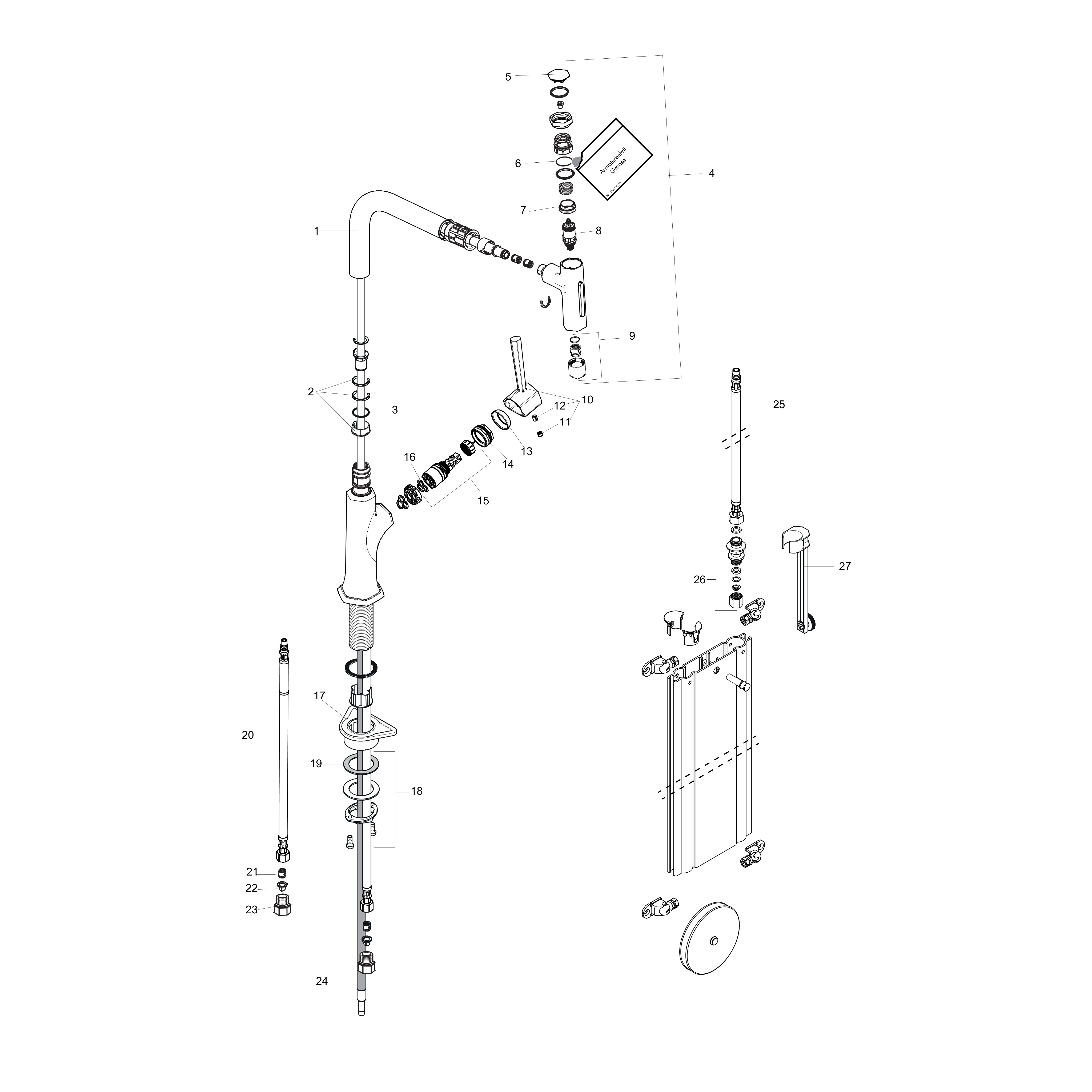

Spare parts for build year 02/21
| Item no. |
|---|
| 1 | spout cpl.92583800 |
| 2 | set of lever collars98365000 |
| 3 | O-ring 21x2,598211000 |
| 4 | handspray93883801 |
| 5 | cover93884800 |
| 6 | O-ring 19x1,595962000 |
| 7 | nut92567000 |
| 8 | shut off unit98463000 |
| 9 | aerator M24x192961800 |
| 10 | handle93885800 |
| 11 | screw cover95704000 |
| 12 | hollow set screw M6x897810000 |
| 13 | flange98863800 |
| 14 | nut93886000 |
| 15 | cartridge, assy95973001 |
| 16 | seal98865000 |
| 17 | support97523000 |
| 18 | fixing set (special)93253000 |
| 19 | lever collar97548000 |
| 20 | connection hose 900 mm M8x0,75 G3/895372000 |
| 21 | non return valve DW 1096456000 |
| 22 | filter packing95291000 |
| 23 | adapter for connection hose88802000 |
| 24 | hose93889001 |
| 25 | connection hose 450 mm M10x1 G3/896507000 |
| 26 | squeezing connection96099000 |
| 27 | extension set43333000 |
Innovative technologies
Saving resources with pleasure
Convenience at the touch of a button
For a tidier kitchen base unit
For more space at the kitchen sink
Flexibility at the kitchen sink
QuickClean: Less limescale, more pleasure
EcoRight
Saving resources with pleasure
hansgrohe standard taps are equipped with our EcoSmart technology to save water and energy – since 2010. While enjoying the full water experience, it consumes max. 5 l/min. Good for a conscious consumption of water and energy.
Select
Convenience at the touch of a button
Fans of user-friendliness can now conveniently start and stop the flow of water at the touch of a button. For accurate, ergonomic and easy water controls that can be operated with the back of the hand or an elbow.
sBox
For a tidier kitchen base unit
Ensures that the hose on pull-out kitchen taps is smoothly, silently, safely and securely pulled out and retracted. Thanks to the sBox, the pull-out spray can be extended to max. 76 cm. It fits into all standard base units.
ComfortZone
For more space at the kitchen sink
Used to describe the generous space created between the kitchen tap and the sink - vertically and horizontally. These high-quality taps are highly user-friendly and have a flexible swivel range. For maximum freedom of movement.
Pull-out
Flexibility at the kitchen sink
More comfort and room to move: Pull-out sprays or pull-out spouts expand the operating radius around the kitchen sink to take water to exactly where it’s needed in just one motion.
QuickClean
QuickClean: Less limescale, more pleasure
Who likes cleaning? Limescale deposits and dirt disappear in an instant. You can rub off the flexible silicone lamellae or nubs with your finger. This takes no time at all and minimises the cleaning effort.
Spray Types
Manufacturer’s guarantee
Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
