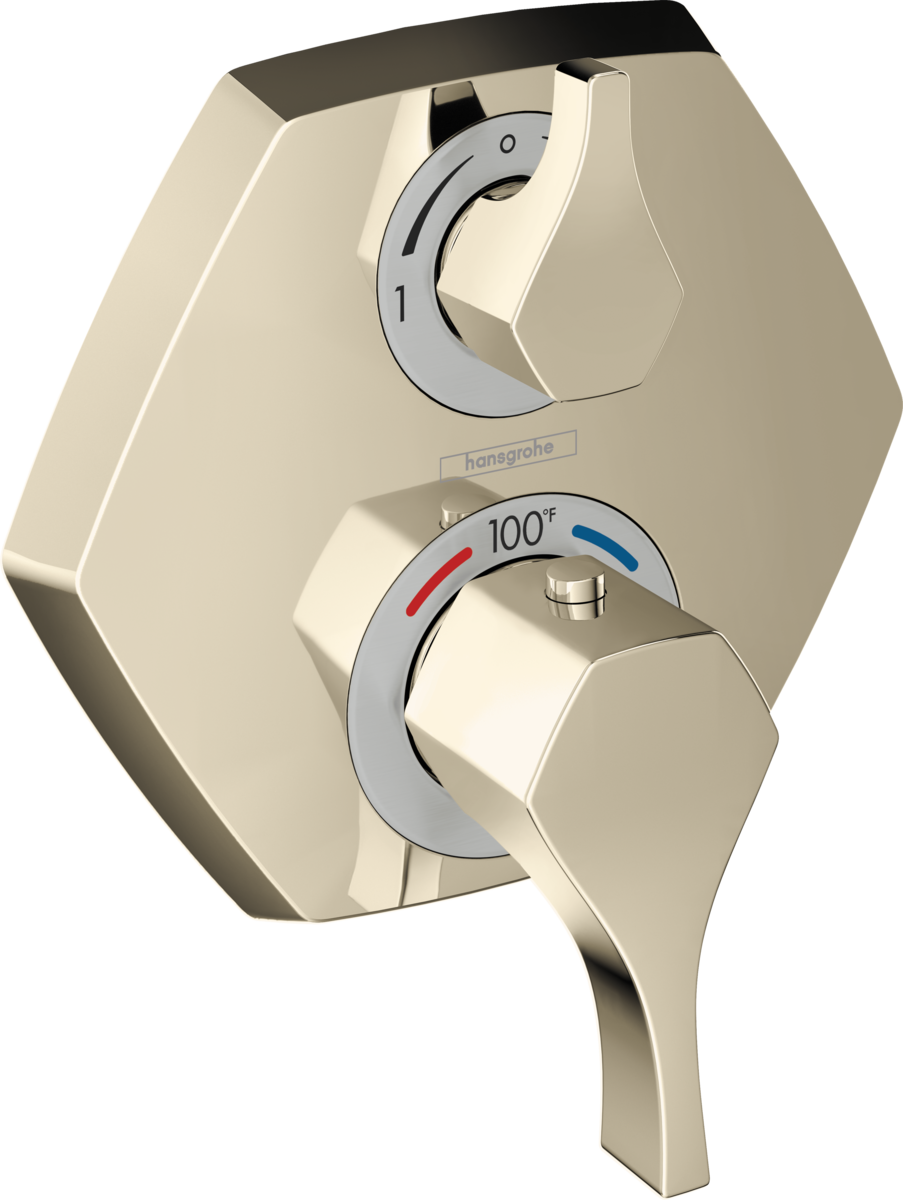

hansgrohe LocarnoThermostatic Trim with Volume Control
Model no. 04821830
Product saved for 30 days.To the product comparison
The article could not be saved.
Please try again.
Please try again.
Article features
- Volume control for 1 function
- T30LV
- Flow: 6.0 GPM (22.7 L/Min)
- Anti-scald 100° safety stop
Download Center
Planning data
Technical drawings
Instructions
Certificates
Required Accessories
Optional Accessories
Spare parts for build year 02/21
| Item no. |
|---|
| 1 | handle for thermostat93917830 |
| 2 | handle fixing set95843000 |
| 3 | handle93918830 |
| 4 | hollow set screw M4x592846000 |
| 5 | escutcheon93921830 |
| 6 | O-ring 44x498471000 |
| 7 | O-ring 30x598153000 |
| 8 | sleeve92216830 |
| 9 | sleeve96446830 |
| 10 | set of fixing screws96454000 |
| 11 | holder for escutcheon98793000 |
| 12 | nut98913000 |
| 13 | thermostat cartridge98282000 |
| 14 | cartridge for exchanged connections92373000 |
| 15 | O-ring 20x1,598197000 |
| 16 | O-ring 25x1,598146000 |
| 17 | O-ring 25x2,592146000 |
| 18 | shut off unit right closing94009000 |
| 19 | set of screws96525000 |
| 20 | O-ring 36x298156000 |
| 21 | O-ring 16x298133000 |
| 22 | noise reduction94073000 |
| 23 | set of non return valves DW 1597350000 |
| 24 | non return valve (pressure-resistant up to 2 MPa)92594000 |
| 25 | extension 25 mm13595000 |
| 26 | set of fixing screws97747000 |
| 27 | compensation set 1°95521000 |
