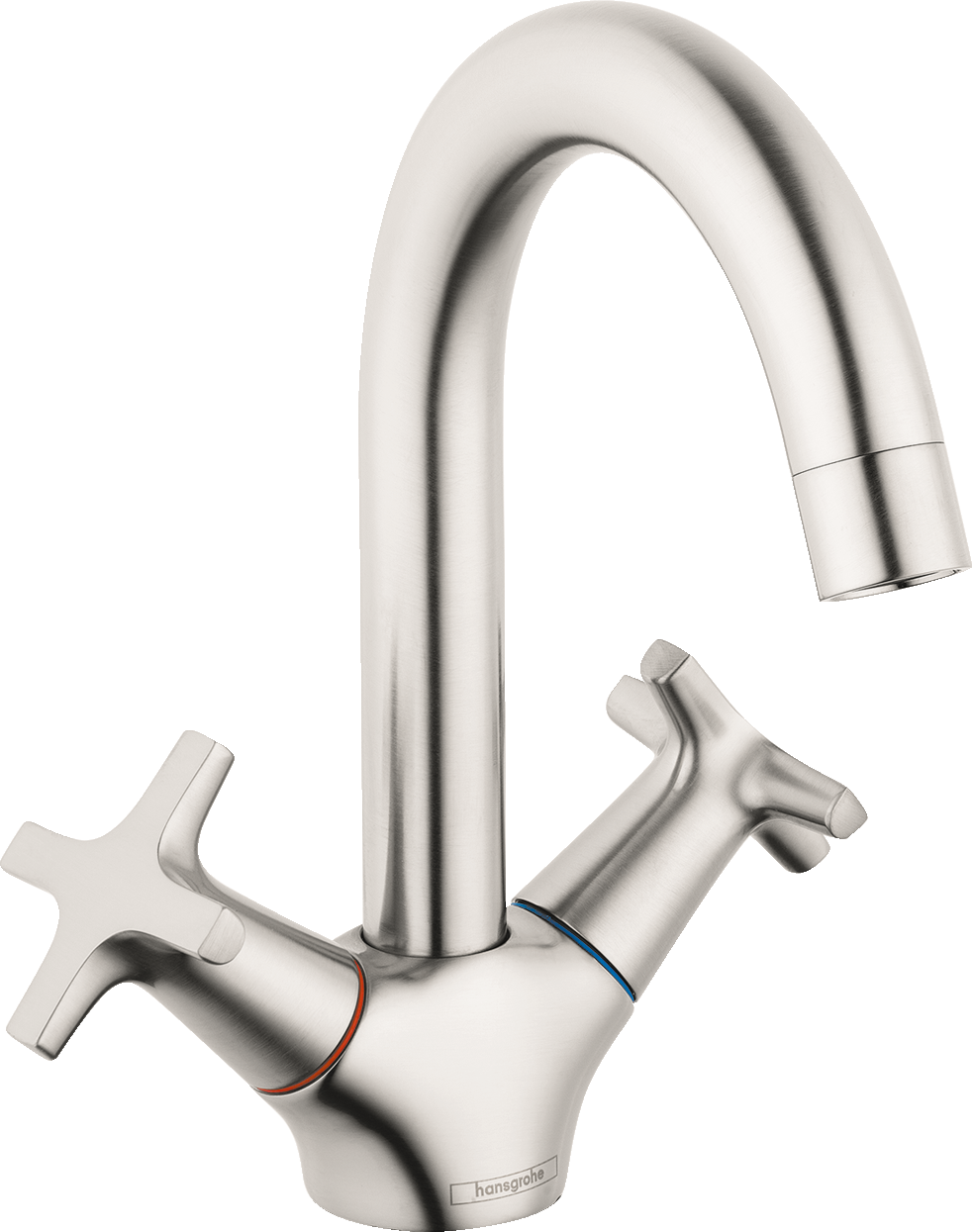

hansgrohe Logis ClassicSingle-Hole Faucet 150 with Swivel Spout and Pop-Up Drain, 1.2 GPM

Model no. 71270821
Please try again.
Article features
- Swivel range 120°
- Spray modes: Aerated spray
- Flow: 1.2 GPM (4.5 L/Min)
- 90° ceramic valves
- Includes pop-up drain
Download Center
Planning data
Technical drawings
Instructions
Certificates


Installation information
Information
Please always observe the safety and installation information for your product. You find these details within the assembly instructions.Spare parts for build year 07/16
To the spare parts catalogItem no. | DescriptionArticle no.Description and article no. |
---|
a | pop up waste88509820 |
1 | spout cpl.96521820 |
2 | sealing set92646000 |
3 | O-Ring 14x2,598189000 |
4 | O-ring 12x298214000 |
5 | screw M8 x 6897736000 |
6 | set of color-rings cold / hot water92225000 |
7 | shut off unit right closing94009000 |
8 | handle92222820 |
9 | handle fixing set98932000 |
10 | seal Ø 4298722000 |
11 | fixing set96016000 |
12 | connection hose 18½" M8x0,75 3/8"96321001 |
13 | pull rod96657820 |
14 | aerator M24x1 (4,5 l/min)92879820 |
15 | axialring97558000 |
16 | screw97662000 |
Innovative technologies

ComfortZone: faucets in different heights
Generous dimensions, sophisticated technology and intuitive operation. Outstanding design, high safety standards and added comfort: Hansgrohe showers, faucets and thermostats with this label expand your ComfortZone.
Save water and protect the climate
Hansgrohe faucets and showers fitted with EcoRight technology require up to 60% less water than conventional products – and without any loss of comfort. You can then reduce your water and energy costs and save valuable resources.
ComfortZone

ComfortZone: faucets in different heights
Generous dimensions, sophisticated technology and intuitive operation. Outstanding design, high safety standards and added comfort: Hansgrohe showers, faucets and thermostats with this label expand your ComfortZone.
EcoRight
Save water and protect the climate
Hansgrohe faucets and showers fitted with EcoRight technology require up to 60% less water than conventional products – and without any loss of comfort. You can then reduce your water and energy costs and save valuable resources.
Manufacturer’s guarantee
Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
We endeavour to always provide up-to-date, complete information on our website. However, we do not assume any liability for the suitability of the information for particular uses.
