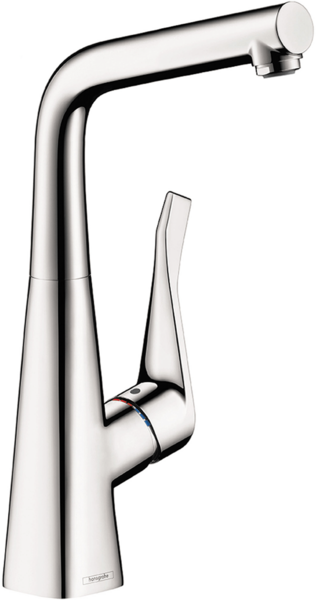

hansgrohe MetrisHighArc Kitchen Faucet, 2-Spray Pull-Out, 1.75 GPM
Model no. 14820001
List price (U.S. dollars) is shown for comparison only. The actual retail price may be different from the price shown.
Product saved for 30 days.To the product comparison
The article could not be saved.
Please try again.
Please try again.
Article features
- Swivel range 110° / 150°
- Laminar spray, needle spray
- Locking spray diverter (reverts to default spray mode upon valve closing)
- MagFit magnetic sprayhead docking
- Flow: 1.75 GPM (6.6 L/Min)
- Ceramic cartridge
- ⅜" connections
- Integrated double backflow prevention
- Extension length up to 19 5/8” (50cm)
Download Center
BIM data
Technical drawings
Certificates
Spare parts for build year 05/21
| Item no. |
|---|
| a | set of lever collars98365000 |
| b | O-ring 21x2,598211000 |
| 1 | spout cpl.98491000 |
| 2 | filter97735000 |
| 3 | handspray98492001 |
| 4 | non return valve93218000 |
| 5 | spray former92183000 |
| 6 | handle98455000 |
| 7 | screw cover96338000 |
| 8 | flange95498000 |
| 9 | nut97209000 |
| 10 | O-Ring 32x298193000 |
| 11 | cartridge, assy92730000 |
| 12 | locking screw for handle95140000 |
| 13 | seal95008000 |
| 14 | seal92582000 |
| 15 | support97523000 |
| 16 | fixing set (Ø 34)95049000 |
| 17 | lever collar97548000 |
| 18 | hose 1,50 m88624000 |
| 19 | O-ring 11x298127000 |
| 20 | weight92500000 |
| 21 | connection hose 600 mm M10x195561000 |
| 22 | connection hose 35½" M8x0,75 3/8"96316001 |
Innovative technologies
ComfortZone: More space around the sink
Used to describe the generous space created between the kitchen tap and the sink - vertically and horizontally. These high-quality taps are highly user-friendly and have a flexible swivel range. For maximum freedom of movement.
QuickClean: Less limescale, more pleasure
Who likes cleaning? Limescale deposits and dirt disappear in an instant. You can rub off the flexible silicone lamellae or nubs with your finger. This takes no time at all and minimises the cleaning effort.
ComfortZone
ComfortZone: More space around the sink
Used to describe the generous space created between the kitchen tap and the sink - vertically and horizontally. These high-quality taps are highly user-friendly and have a flexible swivel range. For maximum freedom of movement.
QuickClean
QuickClean: Less limescale, more pleasure
Who likes cleaning? Limescale deposits and dirt disappear in an instant. You can rub off the flexible silicone lamellae or nubs with your finger. This takes no time at all and minimises the cleaning effort.
Spray Types
Crystal clear and rich without air admixture. Ideal for fast filling of large containers. Prevents splashing.
Resource-efficient and cleansing. Also suitable for quick rinsing of the sink.
Manufacturer’s guarantee
Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
