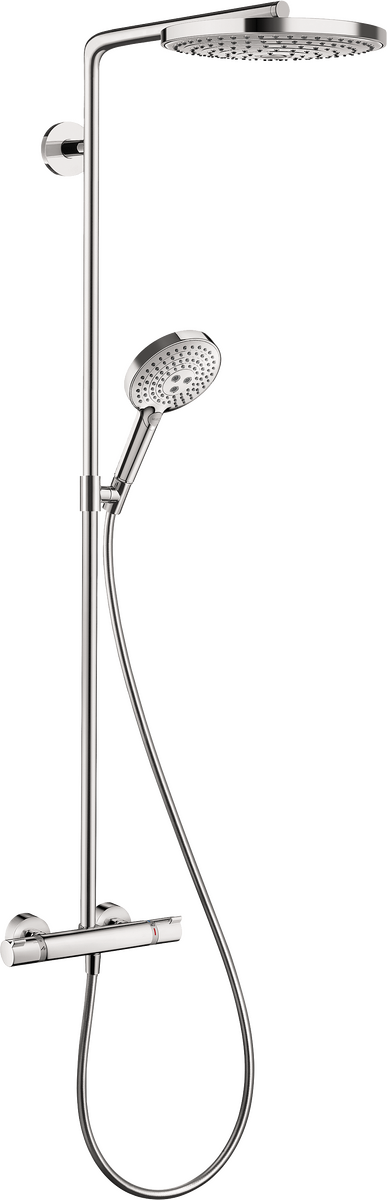

hansgrohe Raindance Select SShowerpipe 240 2-Jet, 2.5 GPM

Model no. 27129001
Please try again.
Article features
- Consists of: Showerhead, Handshower, Thermostatic shower mixer, Handshower hose, Slider
- Spray type overhead shower: RainAir, Rain
- Removable shower head
- Flow: 2.5 GPM (9.5 L/Min)
- Spray modes hand shower: RainAir, Rain, Whirl
- Flow rate of hand shower at 3 bar: 2.5 GPM (9.5 L/Min)
- Rising pipe can be shortened in height
- Shower bar diameter: 25 mm
- Height-adjustable hand shower holder
- Shower arm swivels left and right
- Anti-scald 100° safety stop
- Integrated volume control/diverter for 2 functions
- Outlets may not be operated simultaneously
- Exposed installation
- Thermostatic cartridge
- Intrinsically safe against backflow
- 2 functions
Download Center
Installation information
Scale drawing
Information
Please always observe the safety and installation information for your product. You find these details within the assembly instructions.Information
Required Accessories
Spare parts for build year 08/13
To the spare parts catalogItem no. | DescriptionArticle no.Description and article no. |
---|
d | connecting thread92861000 |
c | pushbutton92848000 |
a | cover cap95433000 |
b | tile-matching-disk 7 mm98681000 |
1 | shower arm98493000 |
2 | O-ring 17x2,598387000 |
3 | hollow set screw M6x598447000 |
4 | screw92137000 |
5 | O-ring 20x298165000 |
6 | escutcheon Ø 80 mm95690000 |
7 | mounting set98716000 |
8 | O-ring 72x298395000 |
9 | wall flange95687000 |
10 | selector assy98343000 |
11 | cover98344000 |
12 | O-ring 3x198384000 |
13 | filter97735000 |
14 | hollow set screw M4x1097667000 |
15 | O-ring 17x298199000 |
16 | pipe 930 mm / Ø 25 mm98496000 |
17 | support, assy95480000 |
18 | hollow set screw M5x1097672000 |
19 | escutcheon98340000 |
20 | isolation valve98341000 |
21 | filter packing96922000 |
22 | set of nuts96157000 |
23 | non return valve96737000 |
24 | O-ring 12x2,2598382000 |
25 | handle95836001 |
26 | handle fixing set95843000 |
27 | O-ring 26x1,598390000 |
28 | stop ring for flow control95927000 |
29 | nut98913000 |
30 | safety set for temperature control95839001 |
31 | shut off unit with selector98283000 |
32 | O-ring 14x298129000 |
33 | shower hose 1,60 m28276003 |
34 | filter packing94246000 |
35 | handshower26531001 |
36 | showerhead cpl.98376001 |
37 | thermostat cartridge98282000 |
38 | spray body92291000 |
39 | seal98058000 |
40 | sleeve92166000 |
Innovative technologies
QuickClean: Less limescale, more joy
Select: water pleasure at the touch of a button
AirPower: more volume thanks to air enrichment
QuickClean
QuickClean: Less limescale, more joy
Is there anyone who likes cleaning? With QuickClean, limescale deposits and dirt on hansgrohe faucets and showers disappear in an instant. Just rub off the flexible nubs made of silicone.
Select
Select: water pleasure at the touch of a button
Soft water droplets or an invigorating massage? Select the jet type you want in just one click, for even more showering fun.
AirPower
AirPower: more volume thanks to air enrichment
In shower technology, Hansgrohe mixes water with air – invigorating AirPower can be felt on your whole body when showering. Water enriched with air makes the water droplets plumper, lighter and softer, and means that the water can be used more effectively.
Spray Types
RainAir
Gentle air-enriched rainfall.
Rain
Perfect for rinsing shampoo out of your hair.
Whirl
Concentrated targeted massage spray.
Manufacturer’s guarantee
Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
We endeavour to always provide up-to-date, complete information on our website. However, we do not assume any liability for the suitability of the information for particular uses.
