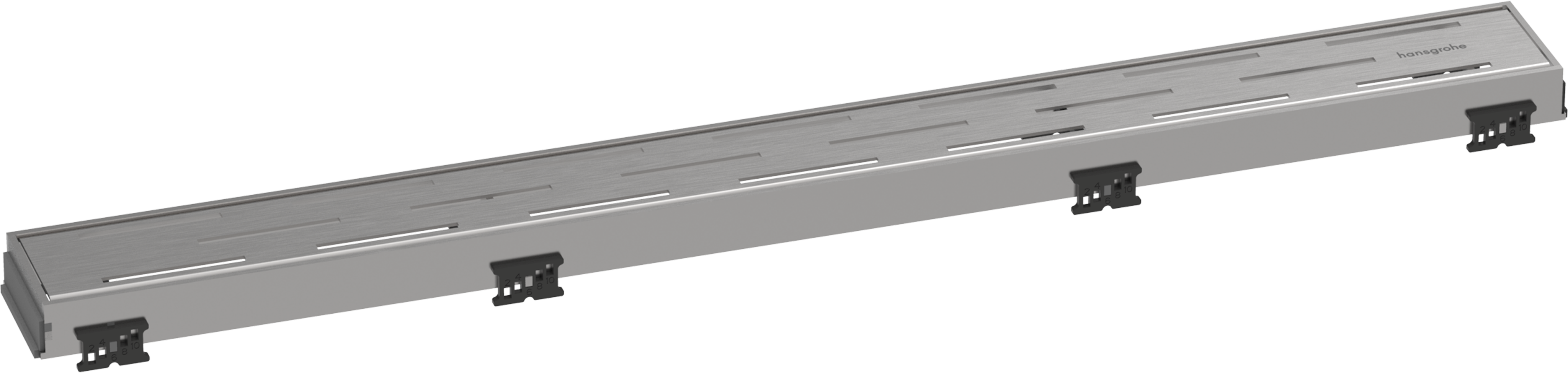

hansgrohe RainDrain Match Regular
Trim Classic for 27 1/2" Rough with Height Adjustable Frame

Trim Classic for 27 1/2" Rough with Height Adjustable Frame
 View in AR
 360° view
Change variant
hansgrohe RainDrain Match Regular
Select variant
Trim Classic for 27 1/2" Rough with Height Adjustable Frame
Trim Classic for 23 5/8" Rough with Height Adjustable Frame
Trim Classic for 31 1/2" Rough with Height Adjustable Frame
Trim Classic for 35 1/2" Rough with Height Adjustable Frame
Trim Classic for 39 3/8" Rough with Height Adjustable Frame
Trim Classic for 47 1/4" Rough with Height Adjustable Frame
Trim Classic for 59 1/8" Rough with Height Adjustable Frame
Finish Brushed Stainless Steel

Model no. 56118801

Article features

  • Consists of: design grate, height adjustable frame, wall installation flange, hair catcher
  • Mounting type: wall-mounted, free in the floor
  • Easy to clean surface
  • Easy adjustment to tile thickness with height adjustable frame (1/4” – 3/4”)
  • Tile thickness: up to 1 1/2”
  • Suitable for any type of tile
  • Up to 15.85 GPM drainage capacity
  • Where to use: new construction, renovation
  • Grate removal tool allows easy removal of the drain set
  • Type of odor seal: mechanical
  • Wall mounting possible
  • Tile inlay depth: 1/2”
  • Grate material: Stainless Steel 304 (1.4301)
  • Suitable for primary and secondary drainage
  • Frame width: 2 1/2”

Download Center

Certificates

cUPC® Listed

 cUPC® Listed products comply with applicable sections of the Uniform Plumbing Code (UPC®), National Plumbing Code of Canada, and International Plumbing Code (IPC®), as well as applicable sections of IAPMO Z124.1.2-2005 / CSA B45.5-2002

Minimum Advertised Price (MAP)

Installation information

Scale drawing

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.
Information
Please note that other products are required to install the product.

Required Accessories

Rough 2" outlet 27 1/2"
hansgrohe RainDrain

Rough 2" outlet 27 1/2"

Innovative technologies

Easy to clean surface

At some point, dirt and hair will build up in every shower drain. This high-quality linear drain is easy to clean: simply take off the cover using the tool provided and remove any residue in no time at all.
Easy to clean surface

For a flush integration into the floor

The shower drain is installed flush with the tiles. The level of the grate can be adjusted to different heights by using the height adjustment frame (Tile thickness 7-18 mm) even after the screed has been poured.
For a flush integration into the floor

QuickClean

Easy to clean surface

At some point, dirt and hair will build up in every shower drain. This high-quality linear drain is easy to clean: simply take off the cover using the tool provided and remove any residue in no time at all.

Adjustable frame height

For a flush integration into the floor

The shower drain is installed flush with the tiles. The level of the grate can be adjusted to different heights by using the height adjustment frame (Tile thickness 7-18 mm) even after the screed has been poured.

Manufacturer’s guarantee

Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
