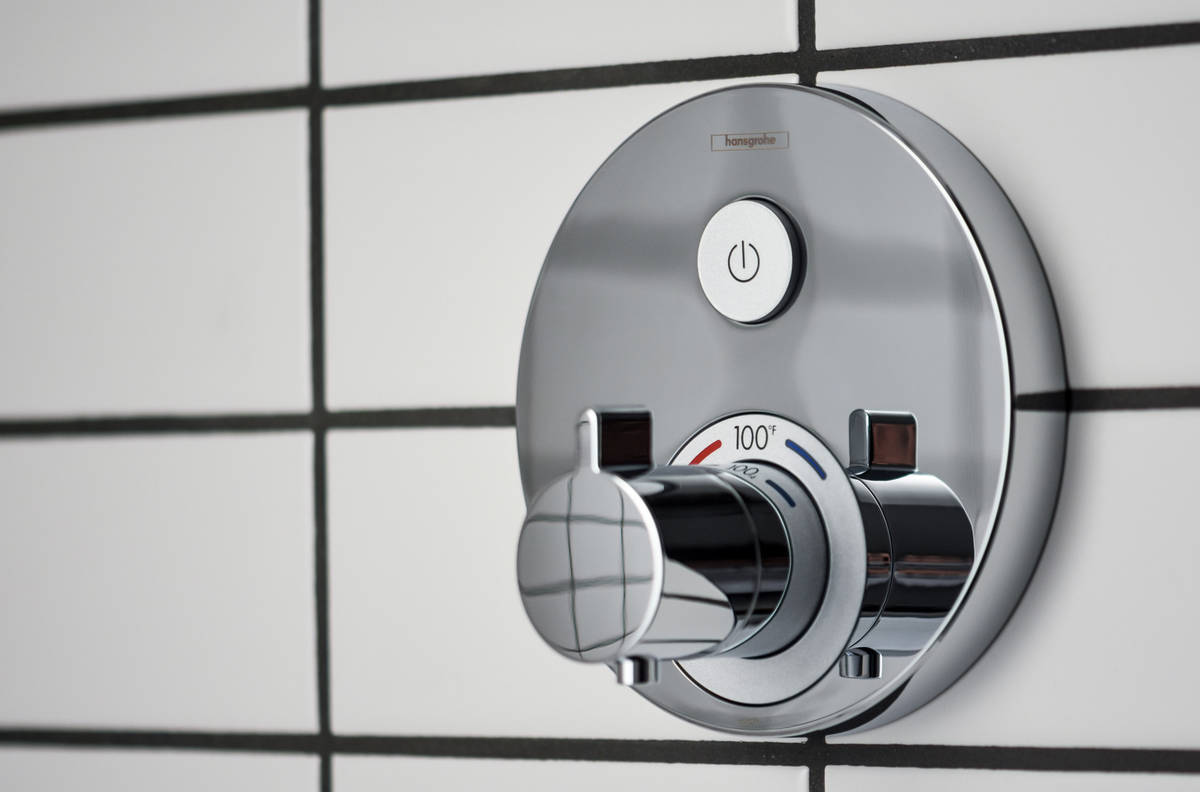

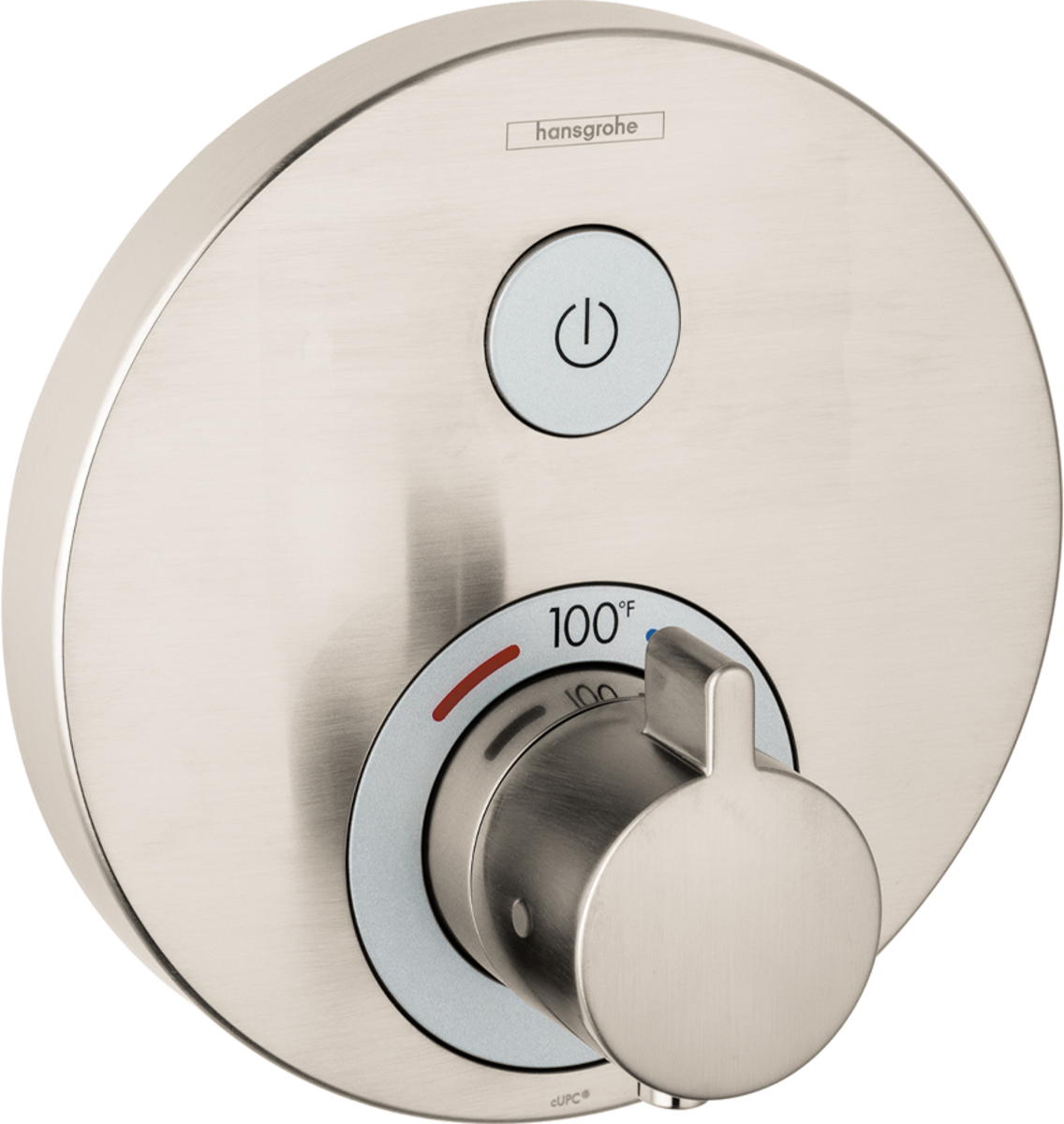

hansgrohe ShowerSelect SThermostatic Trim for 1 Function, Round
Model no. 15744821
Product saved for 30 days.To the product comparison
The article could not be saved.
Please try again.
Please try again.
Article features
- Select push-button on/off control for 1 outlet
- Thermostatic cartridge, Start/stop cartridge
- Flow: 7.0 GPM (26.5 L/Min)
- Optimized for water-efficient shower products
- Anti-scald 100° safety stop
- Thermostat is delivered with On/Off button
Download Center
Technical drawings
Certificates
Required Accessories
Optional Accessories
Spare parts for build year 12/14
| Item no. |
|---|
| i | symbol tub93577880 |
| k | symbol ON/OFF93579880 |
| a | shut off unit (special)92361000 |
| m | set of screws93244000 |
| f | symbol Flood jet93574880 |
| b | compensation set 1°95521000 |
| d | symbol head shower Rain small93572880 |
| j | symbol body shower93578880 |
| h | symbol Mono93576880 |
| l | pushbutton93955880 |
| e | symbol handshower93573880 |
| c | symbol head shower Rain large93571880 |
| g | symbol Whirl93575880 |
| 1 | non return valve97980000 |
| 2 | noise reduction94073000 |
| 3 | O-ring 16x298133000 |
| 4 | set of screws96525000 |
| 5 | shut off unit95758000 |
| 6 | nut98368000 |
| 7 | Select-adapter92219000 |
| 8 | set of symbols92218000 |
| 9 | thermostat cartridge98282000 |
| 10 | O-ring 20x1,598197000 |
| 11 | O-ring 25x1,598146000 |
| 12 | O-ring 25x2,592146000 |
| 13 | nut98913000 |
| 14 | sleeve92216820 |
| 15 | handle fixing set95843000 |
| 16 | set of fixing screws96454000 |
| 17 | O-ring 44x498471000 |
| 18 | escutcheon Ø 150 mm92272821 |
| 19 | extension 25 mm13595000 |
| 20 | extension 22 mm (Ø 170 mm)13596820 |
| 21 | set of fixing screws97747000 |
| 22 | fit-up aid92540000 |
| 24 | handle for thermostat92215821 |
| 25 | O-ring 36x298156000 |
| 26 | nut and flange92696000 |
| 27 | holder for escutcheon98793000 |
Innovative technologies
Intuitive jet adjustment
The Select push button simplifies daily bathroom routines, as one simple push is all it takes for water to flow or stop. When showering, the user-friendly button can change the spray type or switch from the overhead to the hand shower.
Select
Intuitive jet adjustment
The Select push button simplifies daily bathroom routines, as one simple push is all it takes for water to flow or stop. When showering, the user-friendly button can change the spray type or switch from the overhead to the hand shower.
