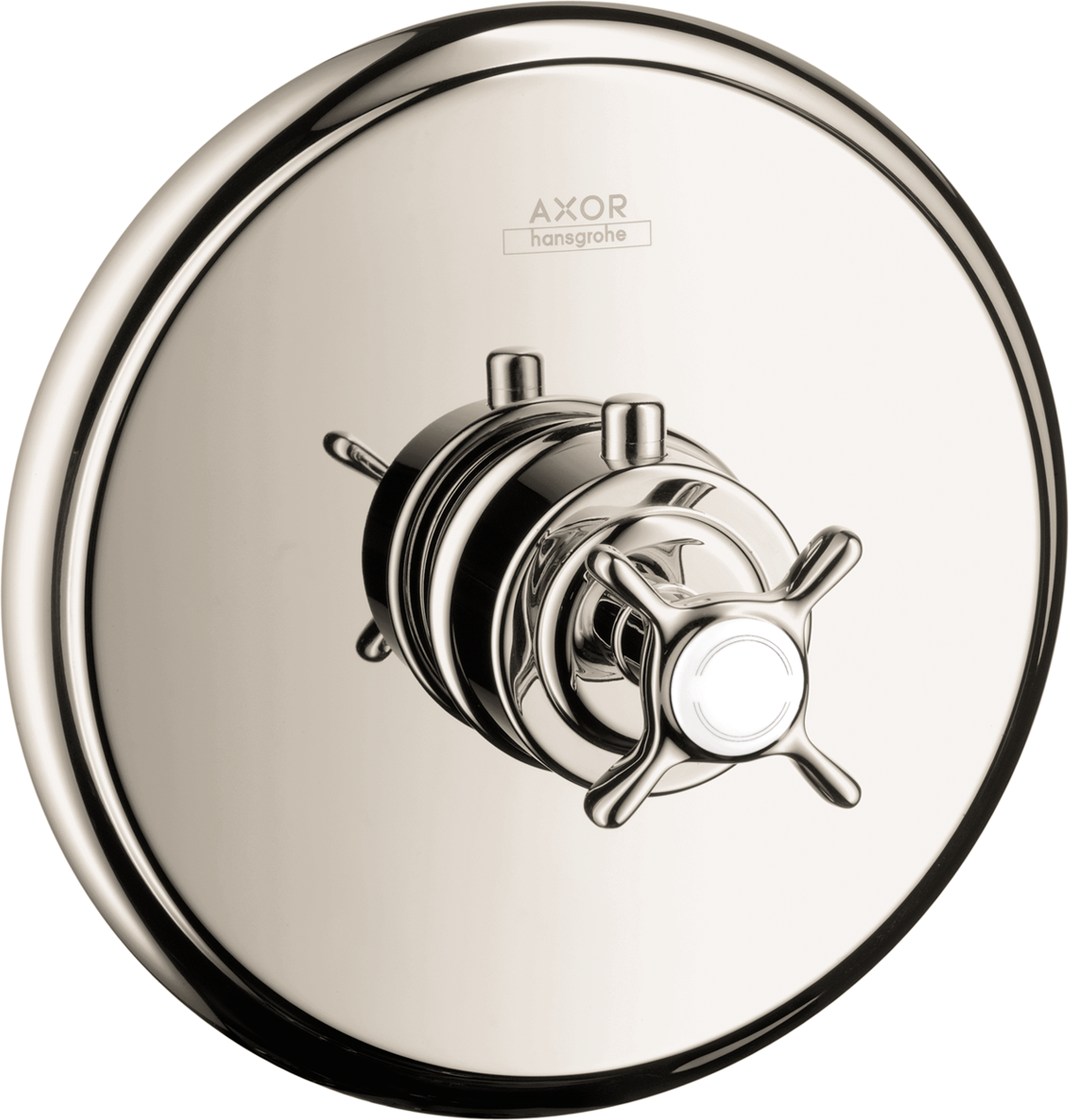

AXOR MontreuxThermostatic Trim HighFlow with Cross Handle
Model no. 16816831
Article features
- Flow: 13.0 GPM (49.2 L/Min)
- Thermostatic cartridge
- Anti-scald 100° safety stop
Download Center
Planning data
Technical drawings
Certificates
cUPC® Listed
Link text
cUPC® Listed products comply with applicable sections of the Uniform Plumbing Code (UPC®), National Plumbing Code of Canada, and International Plumbing Code (IPC®), as well as applicable sections of IAPMO Z124.1.2-2005 / CSA B45.5-2002Installation information
Information
Please always observe the safety and installation information for your product. You find these details within the assembly instructions.Spare parts for build year 06/09
| Item no. |
|---|
| a | base body01850181 |
| 1 | escutcheon98648830 |
| 2 | O-ring 48x598174000 |
| 3 | sub plate96447000 |
| 4 | set of fixing screws96454000 |
| 5 | handle for thermostat16594831 |
| 6 | pushbutton97792830 |
| 7 | hollow set screw M5x1697666000 |
| 8 | sleeve97439830 |
| 9 | adapter for handle96435000 |
| 10 | thermostat cartridge96633000 |
| 11 | set of non return valves DW 1597350000 |
| 12 | set of screws96525000 |
| 13 | O-ring 16x298133000 |
| 14 | extension 25 mm13595000 |
| 15 | extension 22 mm (Ø 170 mm)13596830 |
Manufacturer’s guarantee
Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
We endeavour to always provide up-to-date, complete information on our website. However, we do not assume any liability for the suitability of the information for particular uses.
