AXOR Uno

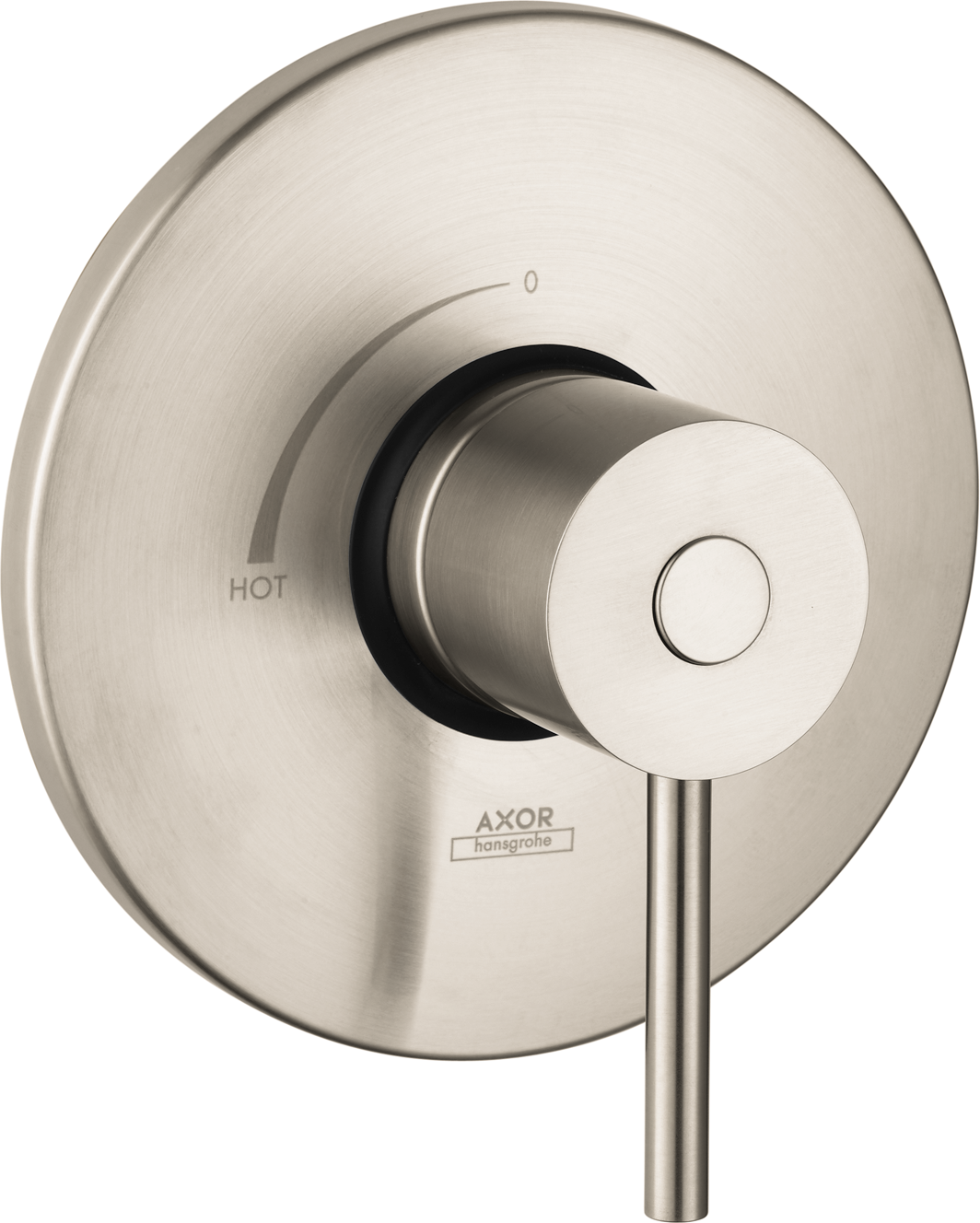

Pressure Balance Trim

product.image.alt
 View in AR
 360° view
Finish brushed nickel

Model no. 38418821

Article features

  • Temperature and on/off control for 1 outlet
  • Flow: 5.44 GPM (20.6 L/Min)
  • Integrated bypass for use with diverter tub spouts

Download Center

Technical drawings

Download all Technical drawings files

Instructions

Download all files

Certificates

ADA Compliant Products

 Products displaying "ADA" will meet actuation force requirements outlined in the Americans with Disabilities ACT and ICC/ ANSI A117.1

Minimum Advertised Price (MAP)

cUPC® Listed

 cUPC® Listed products comply with applicable sections of the Uniform Plumbing Code (UPC®), National Plumbing Code of Canada, and International Plumbing Code (IPC®), as well as applicable sections of IAPMO Z124.1.2-2005 / CSA B45.5-2002

Installation information

Scale drawing

Download all Scale drawing files
Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.
Information
Please note that other products are required to install the product.

Required Accessories

Rough, with Service Stops, ¾"
hansgrohe iBox universal

Rough, with Service Stops, ¾"

Optional Accessories

Shallow Extension Set, Thermostatic/Pressure Balance Trim, ⅞"
hansgrohe

Shallow Extension Set, Thermostatic/Pressure Balance Trim, ⅞"
1" Extension Kit, iBox Universal Plus Rough
hansgrohe

1" Extension Kit, iBox Universal Plus Rough

Spare parts for build year 06/09

To the spare parts catalog
To the spare parts catalog
product.spareparts.image.alt
Item no. DescriptionArticle no.Description and article no.
a base body01850181
1 handle88784820
2 screw cover96540821
3 adapter for handle92756000
4 escutcheon88760820
5 sleeve88765820
6 sub plate96447000
7 set of fixing screws96454000
8 cartridge, assy88727000
9 set of screws96525000
10 O-ring 16x298133000
11 extension 25 mm13595000
12 extension 22 mm (Ø 170 mm)13596820

Manufacturer’s guarantee

Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.



We endeavour to always provide up-to-date, complete information on our website. However, we do not assume any liability for the suitability of the information for particular uses.
