hansgrohe MetropolSingle-Hole Faucet 100 Select, 1.2 GPM
Model no. 32570001
Please try again.
Article features
- Handle variant: Select
- Spray modes: normal spray
- Flow: 1.2 GPM (4.5 L/Min)
- Select cartridge for easy, intuitive operation: Push handle to turn water on and off, and turn to adjust temperature
- Does not include: Pop-up assembly
Download Center
Planning data
BIM data
Technical drawings
Instructions
Certificates
Spare parts for build year 04/20
| Item no. |
|---|
| 1 | handle93070000 |
| 2 | adapter for handle92526000 |
| 3 | nut92528000 |
| 4 | O-ring 27x1,592527000 |
| 5 | cartridge, assy92529000 |
| 6 | adapter for cartridge98866000 |
| 7 | O-ring 23x298398000 |
| 8 | aerator M24x1 (4,5 l/min)93202000 |
| 9 | service tool95661000 |
| 10 | escutcheon93048000 |
| 11 | flat seal98749000 |
| 12 | fixing set (Ø 32)13961000 |
| 13 | lever collar97548000 |
| 14 | connection hose 600 mm M8x0,75 G3/895664000 |
| 15 | O-ring 7x1,598422000 |
| 16 | non return valve DW 1096456000 |
| 17 | filter packing95291000 |
| 18 | adapter for connection hose88802000 |
Innovative technologies
Excellent user comfort
Saving resources with pleasure
Select for faucets
QuickClean: Less limescale, more pleasure
ComfortZone
Excellent user comfort
Greater freedom of movement when washing hands and hair or filling containers: The more precise the fit of the tap, the greater the convenience in the daily use of water. We call this individual use space between the tap and the ceramics the ComfortZone.
EcoRight
Saving resources with pleasure
hansgrohe standard taps are equipped with our EcoSmart technology to save water and energy – since 2010. While enjoying the full water experience, it consumes max. 5 l/min. Good for a conscious consumption of water and energy.
Select
Select for faucets

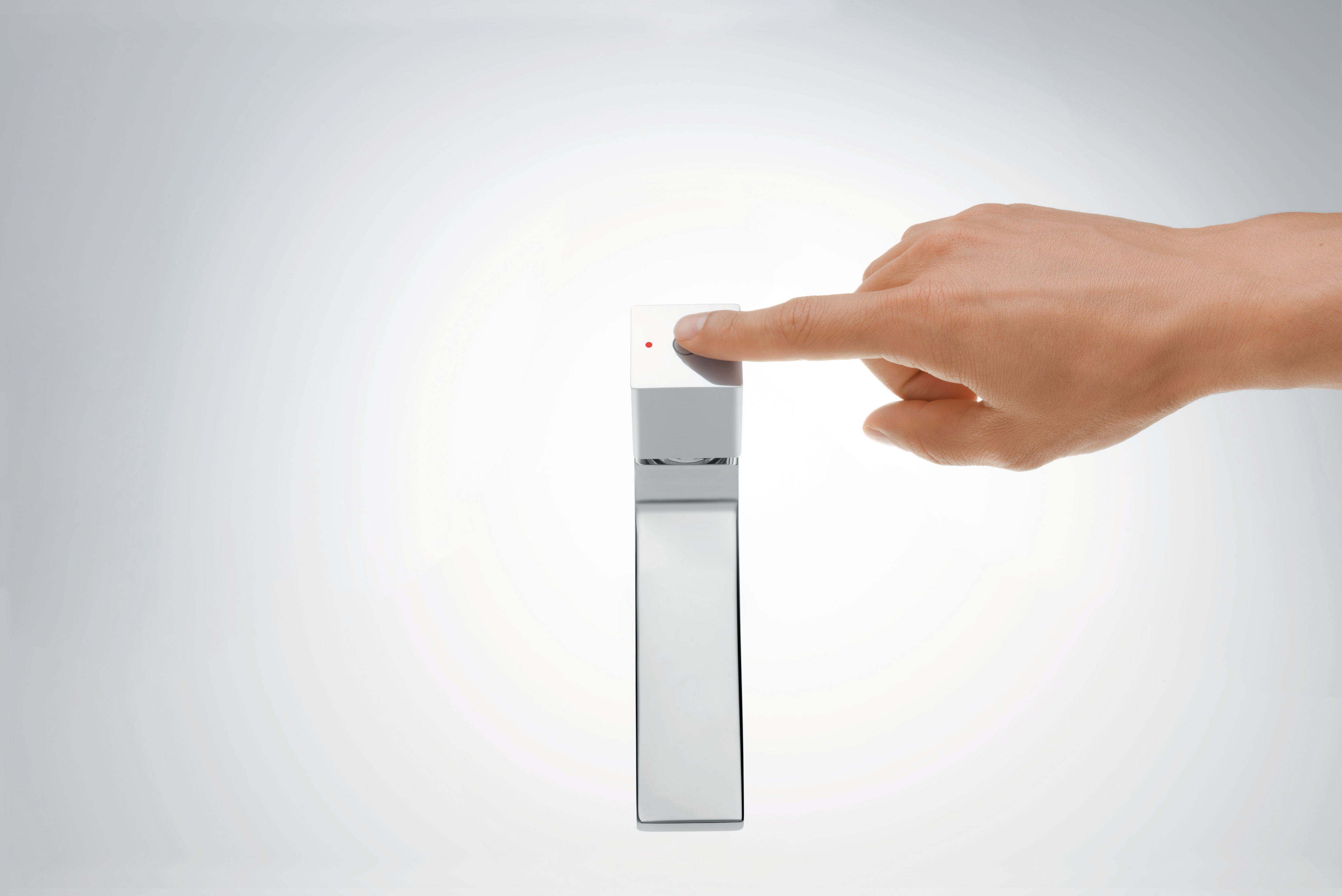

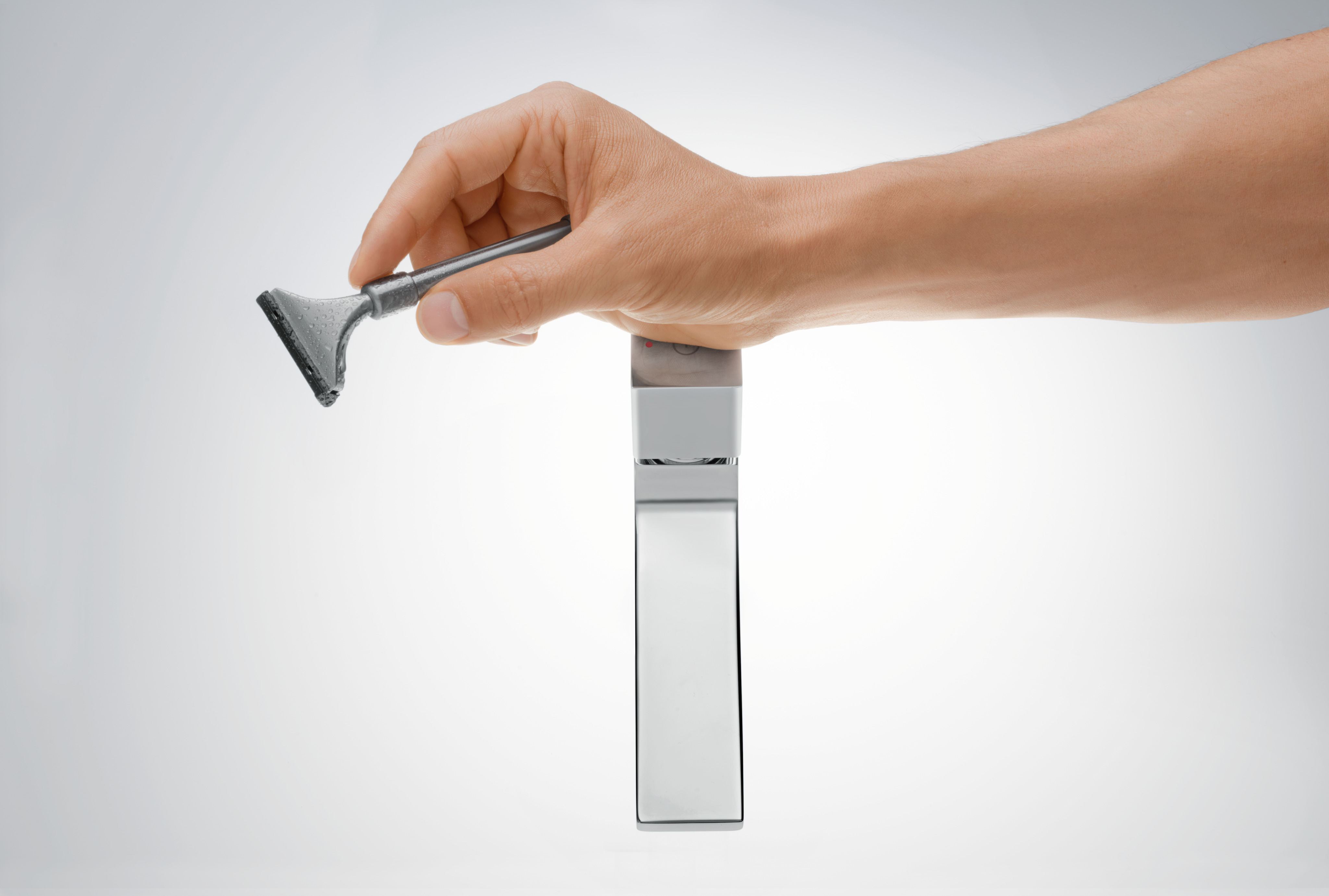

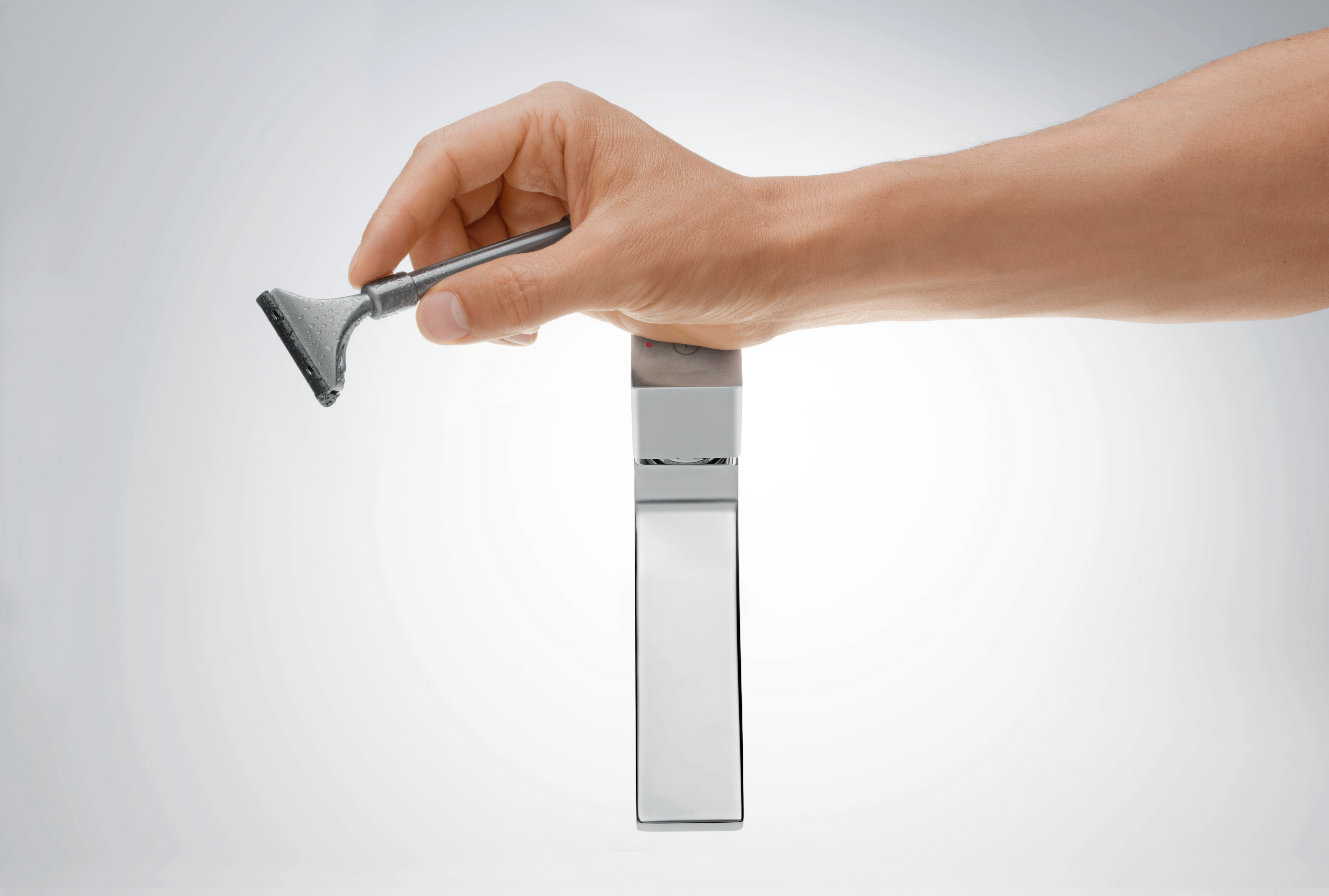

Fans of intuitive design can start, pause and stop the flow of water at the touch of a button. The Select push button simplifies routines such as shaving or brushing teeth and can also be operated using the back of the hand or an elbow.
QuickClean
QuickClean: Less limescale, more pleasure
Who likes cleaning? Limescale deposits and dirt disappear in an instant. You can rub off the flexible silicone lamellae or nubs with your finger. This takes no time at all and minimises the cleaning effort.
Manufacturer’s guarantee
Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
We endeavour to always provide up-to-date, complete information on our website. However, we do not assume any liability for the suitability of the information for particular uses.
