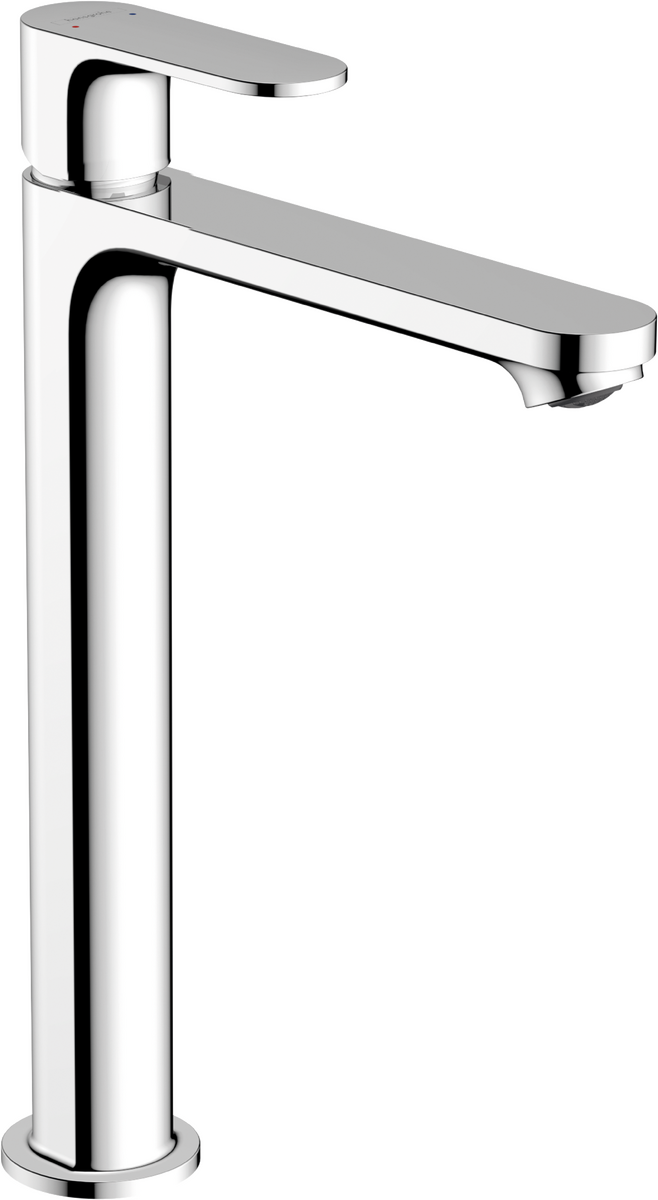

hansgrohe Rebris SSingle-Hole Faucet 240
Model no. 72524001
Please try again.
Article features
- Spout height: 10 Inch
- Handle variant: Lever
- Spray modes: normal spray
- Flow: 1.2 GPM (4.5 L/Min)
- Ceramic cartridge
- Does not include: Pop-up assembly
Download Center
Certificates
Spare parts for build year 01/23
| Item no. |
|---|
| 1 | handle94642000 |
| 2 | hollow set screw M6x10 DIN 91696029000 |
| 3 | screw cover95704000 |
| 4 | flange98863000 |
| 5 | nut98864000 |
| 6 | O-ring 24x298388000 |
| 7 | O-ring 27x1,592527000 |
| 8 | O-ring 25x1,598146000 |
| 9 | cartridge, assy95973001 |
| 10 | seal98865000 |
| 11 | adapter for cartridge98866000 |
| 12 | O-ring 23x298398000 |
| 13 | aerator M24x1 (4,5 l/min)94364001 |
| 14 | fixing set (Ø 32)13961000 |
| 15 | lever collar97548000 |
| 16 | connection hose 23½" M8x0,75 3/8"98600001 |
| 17 | O-ring 6,6x1,693019000 |
Innovative technologies
More pleasure, more efficiency
Excellent user comfort
Saving resources with pleasure
AirPower
More pleasure, more efficiency
Mixes generous quantities of air into the water. The enriched droplets are luxurious, light and soothing on the skin and cause less splash in the wash basin. For a more efficient use of the precious resource that is water.
ComfortZone
Excellent user comfort
Greater freedom of movement when washing hands and hair or filling containers: The more precise the fit of the tap, the greater the convenience in the daily use of water. We call this individual use space between the tap and the ceramics the ComfortZone.
EcoRight
Saving resources with pleasure
hansgrohe standard taps are equipped with our EcoSmart technology to save water and energy – since 2010. While enjoying the full water experience, it consumes max. 5 l/min. Good for a conscious consumption of water and energy.
Awards
Manufacturer’s guarantee
Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
