AXOR Drain

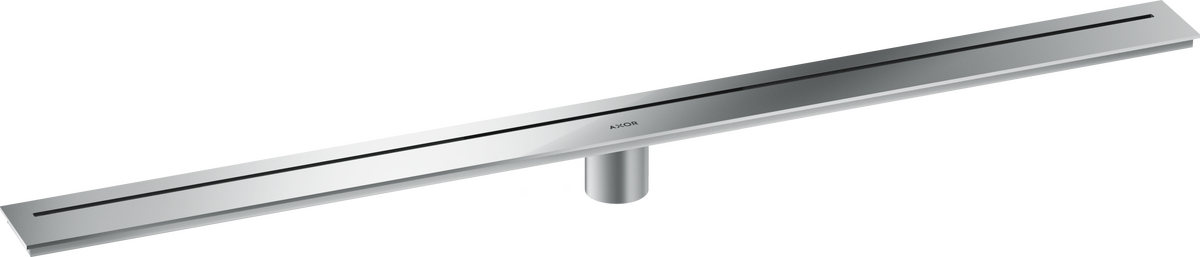

Floor Installation 1000mm (39 3/8")

Floor Installation 1000mm (39 3/8")
 View in AR
 360° view
Change variant
AXOR Drain
Select variant
Floor Installation 1000mm (39 3/8")
Floor Installation 700mm (27 9/16")
Floor Installation 800mm (31 1/2")
Floor Installation 900mm (35 7/16")
Floor Installation 1200mm (47 1/4")
Finish Chrome

Model no. 42523001

Article features

  • Consists of: design grate, installation set
  • Mounting type: free in the floor
  • Easy to clean surface
  • Installation set height adjustable by 1/4”- 3/4” tile thickness
  • Tile thickness: up to 3/4”
  • Suitable for any type of tile
  • Up to 14 GPM drainage capacity
  • Where to use: new construction, renovation
  • Grate removal tool allows easy removal of the drain set
  • No visible silicone joint
  • With integrated slope
  • Grate material: Stainless Steel 304 (1.4301)
  • Suitable for primary drainage
  • Suitable for clamp drain or no hub sleeve installation (parts need to be ordered separately)
