AXOR Drain

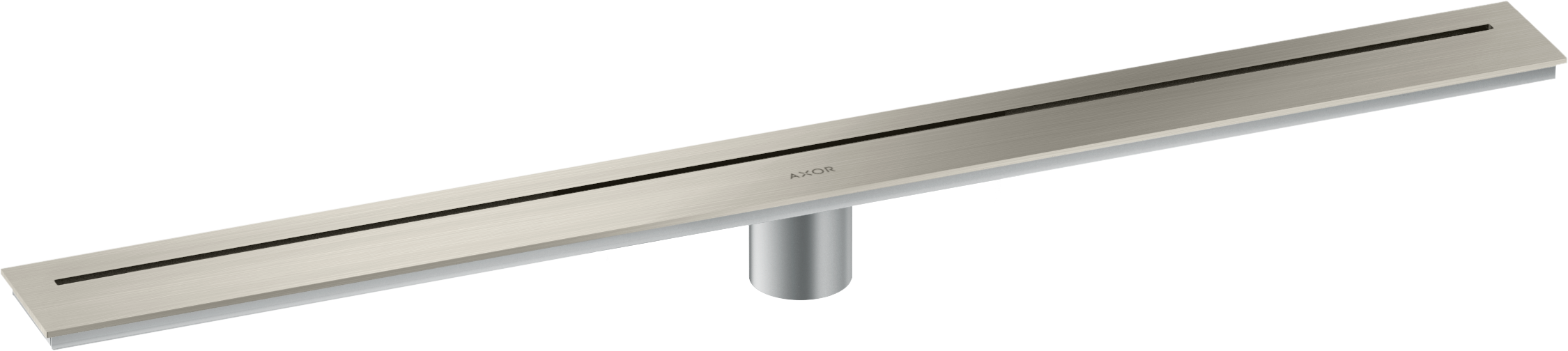

Floor Installation 800mm (31 1/2")

COMING SOON
product.image.alt
 View in AR
 360° view
Change variant
AXOR Drain
Select variant
Floor Installation 800mm (31 1/2")
Floor Installation 700mm (27 9/16")
Floor Installation 900mm (35 7/16")
Floor Installation 1000mm (39 3/8")
Floor Installation 1200mm (47 1/4")
Finish Brushed Stainless Steel

Model no. 42521801

Article features

  • Consists of: design grate, installation set
  • Mounting type: free in the floor
  • Easy to clean surface
  • Tile thickness: up to 18 mm
  • Suitable for any type of tile
  • Up to 53 l/min drainage capacity
  • Field of application: new construction, renovation
  • Grate removal tool allows easy removal of the pre-fab set
  • with integrated slope
  • No visible silicone joint
  • Grate material: Stainless Steel 304 (1.4301)
  • Suitable for primary drainage
  • Suitable for clamp drain or no hub sleeve installation (parts need to be ordered separately)

Download Center

Technical drawings

Download all Technical drawings files

Instructions

Download all files

Certificates

cUPC® Listed

 cUPC® Listed products comply with applicable sections of the Uniform Plumbing Code (UPC®), National Plumbing Code of Canada, and International Plumbing Code (IPC®), as well as applicable sections of IAPMO Z124.1.2-2005 / CSA B45.5-2002

Minimum Advertised Price (MAP)

Installation information

Scale drawing

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.

Required parts - Select variant

No Hub Sleeve
hansgrohe

No Hub Sleeve
Rectangular Clamp Drain 2" Cast Iron
hansgrohe

Rectangular Clamp Drain 2" Cast Iron
Rectangular Clamp Drain 2" ABS
hansgrohe

Rectangular Clamp Drain 2" ABS
Rectangular Clamp Drain 2" PVC
hansgrohe

Rectangular Clamp Drain 2" PVC

Innovative technologies

Easy to clean surface

At some point, dirt and hair will build up in every shower drain. This high-quality linear drain is easy to clean: simply take off the cover using the tool provided and remove any residue in no time at all.

For a flush integration into the floor

The shower drain is installed flush with the tiles. The level of the grate can be adjusted to different heights by using the height adjustment frame (Tile thickness 7-18 mm) even after the screed has been poured.

QuickClean

Easy to clean surface

At some point, dirt and hair will build up in every shower drain. This high-quality linear drain is easy to clean: simply take off the cover using the tool provided and remove any residue in no time at all.

Adjustable frame height

For a flush integration into the floor

The shower drain is installed flush with the tiles. The level of the grate can be adjusted to different heights by using the height adjustment frame (Tile thickness 7-18 mm) even after the screed has been poured.

Awards

iF product design award 2023

iF product design award 2023

 Products from A to Z: Those which receive this award are among the best designed in the world. This internationally recognized seal of approval has been awarded since 1953 by the International Forum Design.

Manufacturer’s guarantee

Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.



We endeavour to always provide up-to-date, complete information on our website. However, we do not assume any liability for the suitability of the information for particular uses.
