AXOR EdgeThermostatic Trim with Volume Control and Diverter
Model no. 46760001
Product saved for 30 days.To the product comparison
The article could not be saved.
Please try again.
Please try again.
Article features
- Volume control and diverter for 2 functions
- Thermostatic cartridge, Shut-off/ diverter valve
- Flow: 5.81 gal/min
- Anti-scald 100° safety stop
Download Center
Planning data
Technical drawings
Instructions
Required Accessories
Optional Accessories

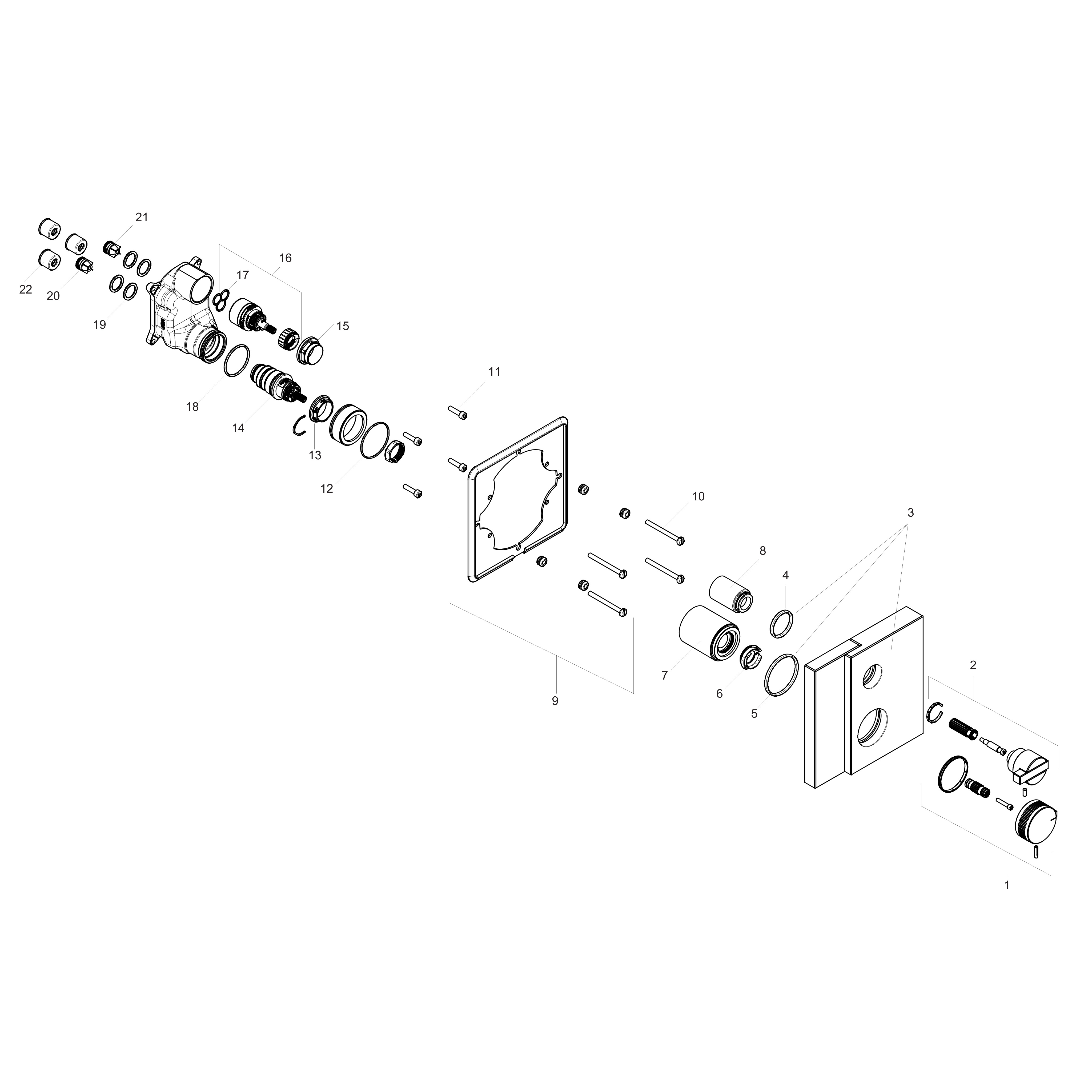

Spare parts for build year 01/20
| Item no. |
|---|
| c | set of fixing screws97747000 |
| b | extension 25 mm13595000 |
| a | cartridge for exchanged connections92373000 |
| 1 | handle for thermostat93593001 |
| 2 | handle93762001 |
| 3 | escutcheon 170 / 170 mm93597000 |
| 4 | O-Ring 48x395508000 |
| 5 | O-ring 29x398371000 |
| 6 | safety set93603000 |
| 7 | sleeve93602000 |
| 8 | sleeve93601000 |
| 9 | sub plate93604000 |
| 10 | set of fixing screws96454000 |
| 11 | set of screws96525000 |
| 12 | O-ring 43x1,598148000 |
| 13 | nut98913000 |
| 14 | thermostat cartridge98282000 |
| 15 | nut93605000 |
| 16 | shut off unit with selector98283000 |
| 17 | seal95008000 |
| 18 | O-ring 36x298156000 |
| 19 | O-ring 16x298133000 |
| 20 | non return valve (pressure-resistant up to 2 MPa)92594000 |
| 21 | set of non return valves DW 1594074000 |
| 22 | noise reduction94073000 |
