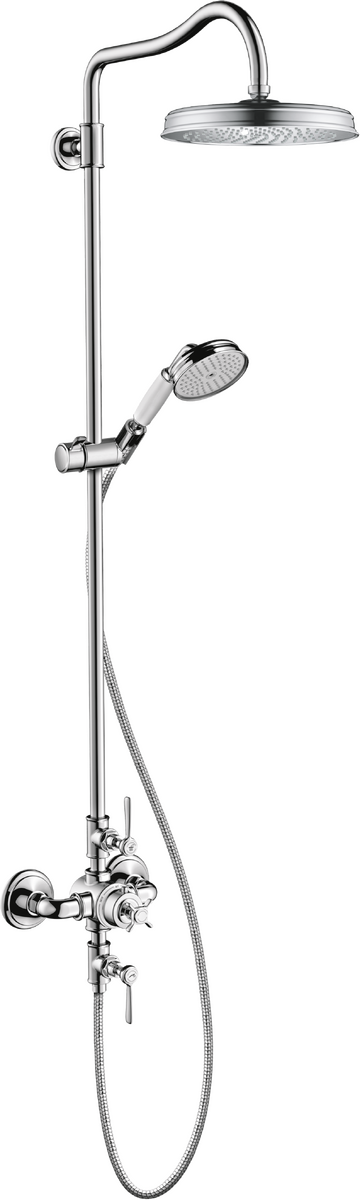

AXOR MontreuxShowerpipe 240 1-Jet, 1.8 GPM
Model no. 16574001
Product saved for 30 days.To the product comparison
The article could not be saved.
Please try again.
Please try again.
Article features
- Consists of: Showerhead, Handshower, Thermostatic shower mixer, Handshower hose, Slider, Wallbar
- Spray type overhead shower: Rain
- Spray modes hand shower: RainAir
- Flow rate of hand shower at 3 bar: 1.8 GPM (6.8 L/Min)
- Maximum flow rate for Showerpipe: 1.8 GPM (6.8 L/Min)
- Shower bar diameter: 0.87"
- Height-adjustable hand shower holder
- Anti-scald 100° safety stop
- Integrated volume controls
- Outlets may not be operated simultaneously
- Exposed installation
- Thermostatic cartridge
- Intrinsically safe against backflow
- Stand pipe: 41.73"
- 2 functions
Download Center
Technical drawings
Instructions
Certificates
Spare parts for build year 01/18
| Item no. |
|---|
| 1 | wall flange95688000 |
| 2 | O-Ring 50x298187000 |
| 3 | mounting set96179000 |
| 4 | tile-matching-disk 7 mm95239000 |
| 5 | O-ring 20x298165000 |
| 6 | escutcheon Ø 60 mm92982000 |
| 7 | screw92137000 |
| 8 | sleeve92166000 |
| 9 | hollow set screw M6x598447000 |
| 10 | set of screw covers93182000 |
| 11 | handshower16320000 |
| 12 | filter packing94246000 |
| 13 | shower hose 1,60 m28116000 |
| 14 | seal98058000 |
| 15 | O-ring 12x2,2598382000 |
| 16 | O-ring 15x2,598131000 |
| 17 | pipe 973 mm / Ø 22 mm92468000 |
| 18 | sleeve92983000 |
| 19 | support, assy98723000 |
| 20 | set of S-unions (±32 mm)98592000 |
| 21 | noise reduction96429000 |
| 22 | escutcheon98595000 |
| 23 | filter packing96922000 |
| 24 | O-ring 17x1,598137000 |
| 25 | non return valve96737000 |
| 26 | shut off unit right closing94009000 |
| 27 | O-ring 14x1,7892984000 |
| 28 | sleeve92712000 |
| 29 | adapter for handle92375000 |
| 30 | O-ring 16x298133000 |
| 31 | set of screw covers, cold / hot water / neutral97987000 |
| 32 | handle for thermostat16594000 |
| 33 | hollow set screw M5x1697666000 |
| 34 | deco-ring92985000 |
| 35 | O-ring 48x2,592987000 |
| 36 | sleeve92986000 |
| 37 | adapter for handle96435000 |
| 38 | nut98913000 |
| 39 | thermostat cartridge98282001 |
| 40 | handle92705000 |
Innovative technologies
Less limescale, more joy
Who actually likes cleaning? Limescale deposits and dirt disappear in an instant with this technology. Simply rub the flexible silicone discs or nozzles with a finger. It’s fast and keeps cleaning to a minimum.
More pleasure, more efficiency
Mixes generous quantities of air into the water to create light, pearl-like droplets that caress the skin. The shower feels luxurious, even though little water is consumed. The spray causes less splash, reducing the time to clean the shower area.
QuickClean
Less limescale, more joy
Who actually likes cleaning? Limescale deposits and dirt disappear in an instant with this technology. Simply rub the flexible silicone discs or nozzles with a finger. It’s fast and keeps cleaning to a minimum.
AirPower
More pleasure, more efficiency
Mixes generous quantities of air into the water to create light, pearl-like droplets that caress the skin. The shower feels luxurious, even though little water is consumed. The spray causes less splash, reducing the time to clean the shower area.
Spray Types
Invigorating and energising everyday showering indulgence with a satisfyingly full shower rain. With its small outlets on the shower head, this spray type works efficiently to thoroughly rinse out shampoo.
Gentle droplets enriched with air from the luxurious shower rain feel silky soft on the skin for an indulgent shower. Additionally, this spray type is efficient and thorough enough to rinse out shampoo.
Manufacturer’s guarantee
Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
We endeavour to always provide up-to-date, complete information on our website. However, we do not assume any liability for the suitability of the information for particular uses.
