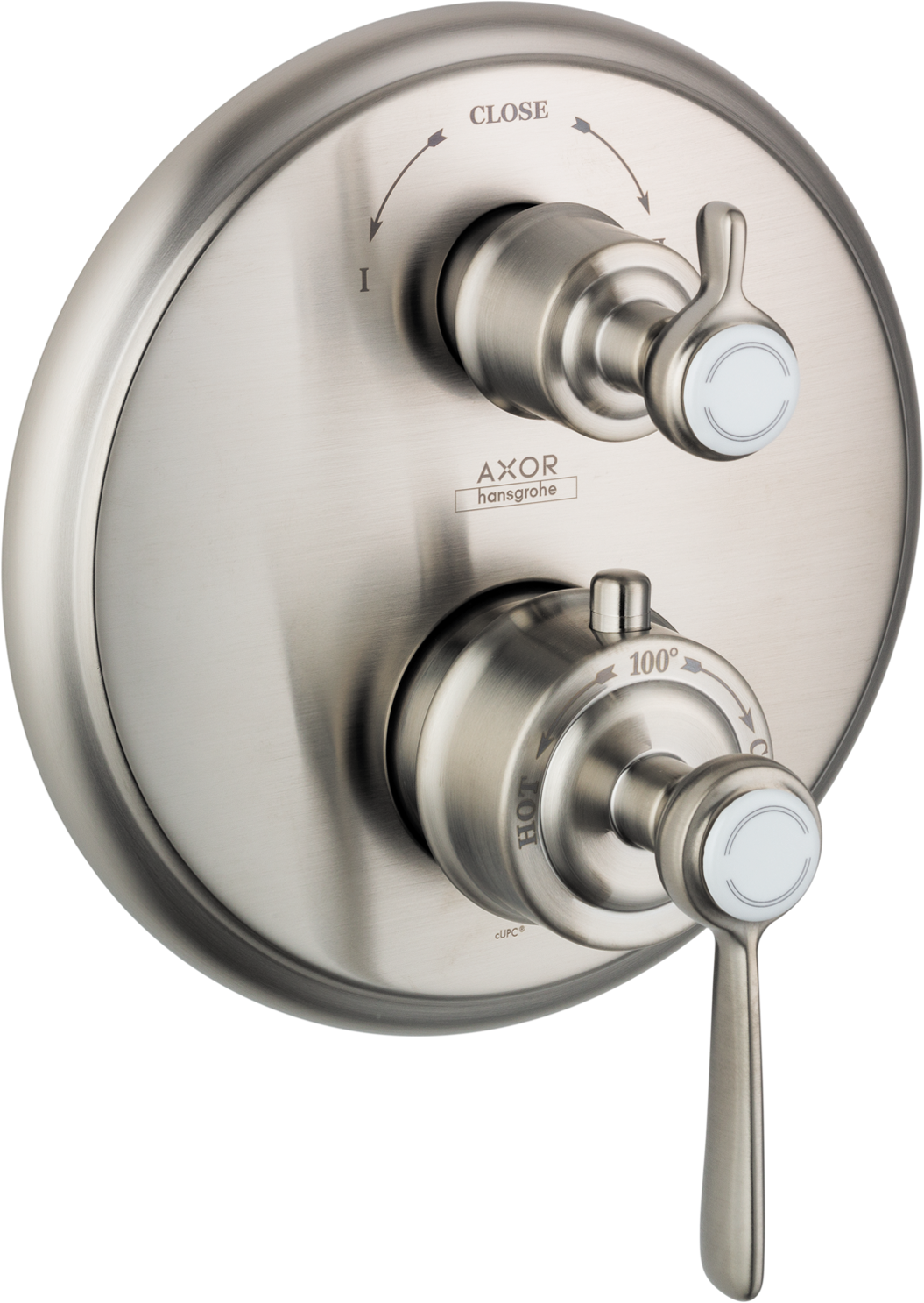

AXOR MontreuxThermostatic Trim with Volume Control and Diverter
Model no. 16821821
Product saved for 30 days.To the product comparison
The article could not be saved.
Please try again.
Please try again.
Article features
- Volume control and diverter for 2 functions
- Thermostatic cartridge, Shut-off/ diverter valve
- Flow: 7.0 GPM (26.5 L/Min)
- Anti-scald 100° safety stop
Download Center
Planning data
Technical drawings
Instructions
Certificates
Required Accessories
Spare parts for build year 08/13
| Item no. |
|---|
| 1 | handle for thermostat16694821 |
| 2 | hollow set screw M5x1697666000 |
| 3 | cover cap95991000 |
| 4 | handle98637820 |
| 5 | hollow set screw M4x897669000 |
| 6 | adapter for handle96435000 |
| 7 | adapter for handle96451000 |
| 8 | escutcheon98638820 |
| 9 | escutcheon for exchanged connections95829000 |
| 10 | O-Ring 48x395508000 |
| 11 | O-ring 29x398371000 |
| 12 | sleeve96446820 |
| 13 | sleeve96439820 |
| 14 | sub plate96447000 |
| 15 | set of fixing screws96454000 |
| 16 | thermostat cartridge94282000 |
| 17 | sealing set95037000 |
| 18 | shut off unit with selector98283000 |
| 19 | set of screws96525000 |
| 20 | installation unit cpl.92592000 |
| 21 | O-ring 16x298133000 |
| 22 | set of non return valves DW 1597350000 |
| 23 | noise reduction94073000 |
| 24 | extension 25 mm13595000 |
| 25 | extension 22 mm (Ø 170 mm)13596820 |
Manufacturer’s guarantee
Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
We endeavour to always provide up-to-date, complete information on our website. However, we do not assume any liability for the suitability of the information for particular uses.
