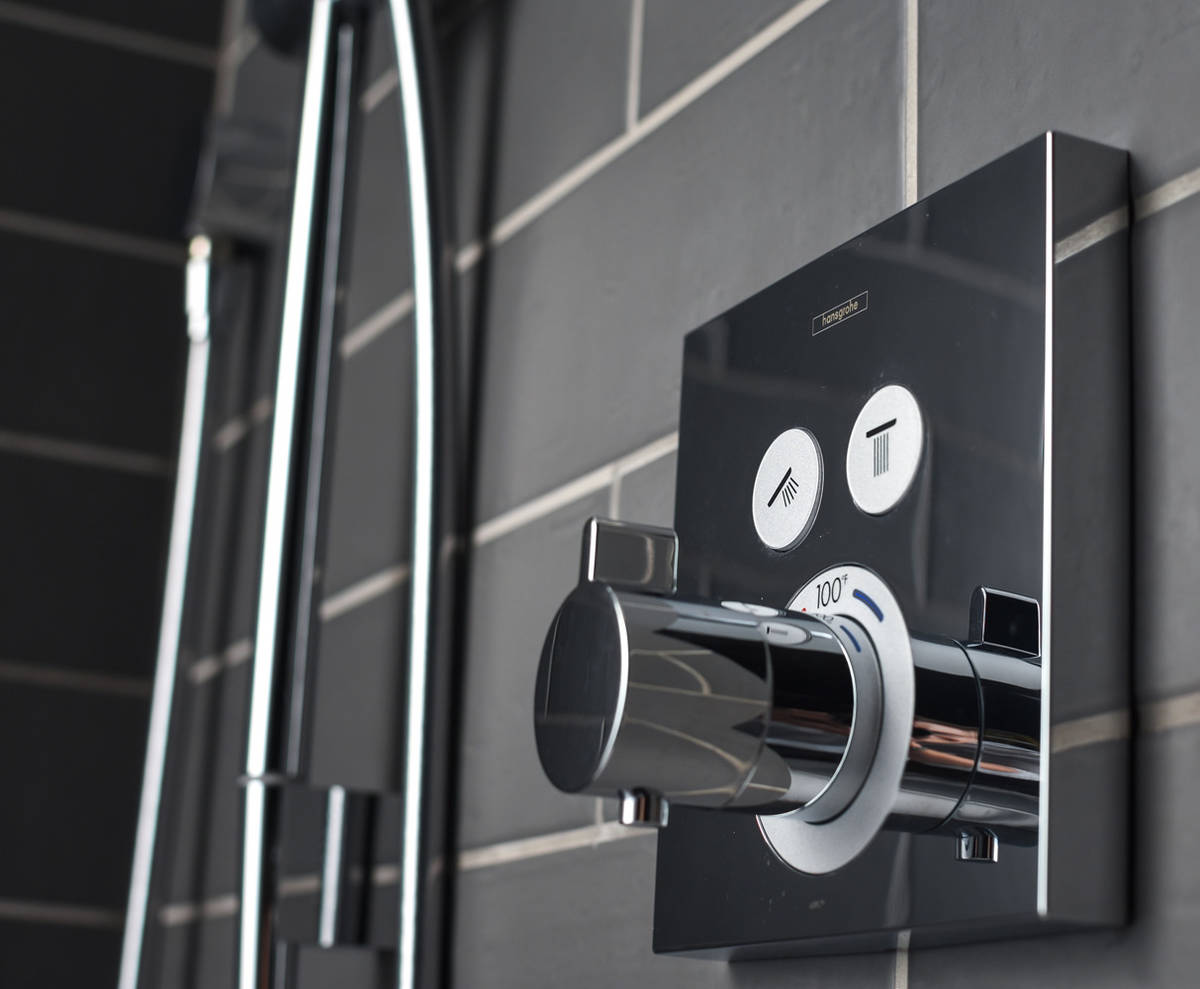

hansgrohe ShowerSelectThermostatic Trim for 2 Functions, Square
Model no. 15763001
Product saved for 30 days.To the product comparison
The article could not be saved.
Please try again.
Please try again.
Article features
- Outlets may be operated simultaneously
- Select push-button on/off control for 2 outlets
- Thermostatic cartridge, Start/stop cartridge
- Flow: 8.0 GPM (30.3 L/Min) / 2.0 GPM (7.6 L/Min)
- Optimized for water-efficient shower products
- Anti-scald 100° safety stop
- Trim comes with Select buttons: handshower and Rain
- Optional accessory to limit total flow to 2.0 GPM @ 80 psi where required
- EPD_20230023_Thermostats
Download Center
Technical drawings
Instructions
Certificates
Required Accessories
Spare parts for build year 12/14
| Item no. |
|---|
| f | symbol handshower93573880 |
| d | symbol head shower Rain large93571880 |
| j | symbol tub93577880 |
| h | symbol Whirl93575880 |
| l | symbol ON/OFF93579880 |
| e | symbol head shower Rain small93572880 |
| m | pushbutton93955880 |
| g | symbol Flood jet93574880 |
| i | symbol Mono93576880 |
| a | set of symbols92218000 |
| c | Grease90920000 |
| b | shut off unit (special)92361000 |
| k | symbol body shower93578880 |
| 1 | non return valve97980000 |
| 2 | noise reduction94073000 |
| 3 | O-ring 16x298133000 |
| 4 | set of screws96525000 |
| 5 | O-ring 36x298156000 |
| 6 | shut off unit95758000 |
| 7 | nut98368000 |
| 8 | Select-adapter92219000 |
| 9 | thermostat cartridge98282000 |
| 10 | O-ring 20x1,598197000 |
| 11 | O-ring 25x1,598146000 |
| 12 | O-ring 25x2,592146000 |
| 13 | nut98913000 |
| 14 | sleeve92216000 |
| 15 | handle fixing set95843000 |
| 16 | holder for escutcheon98793000 |
| 17 | set of fixing screws96454000 |
| 18 | escutcheon 155 / 155 mm92217001 |
| 19 | O-ring 44x498471000 |
| 20 | handle for thermostat92215001 |
| 21 | fit-up aid92540000 |
| 22 | non return valve (pressure-resistant up to 2 MPa)92594000 |
| 23 | nut and flange92696000 |
| 24 | compensation set 1°95521000 |
| 25 | extension 25 mm13595000 |
| 26 | extension 22 mm13593000 |
Innovative technologies
Intuitive jet adjustment
The Select push button simplifies daily bathroom routines, as one simple push is all it takes for water to flow or stop. When showering, the user-friendly button can change the spray type or switch from the overhead to the hand shower.
Select
Intuitive jet adjustment
The Select push button simplifies daily bathroom routines, as one simple push is all it takes for water to flow or stop. When showering, the user-friendly button can change the spray type or switch from the overhead to the hand shower.
Manufacturer’s guarantee
Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
