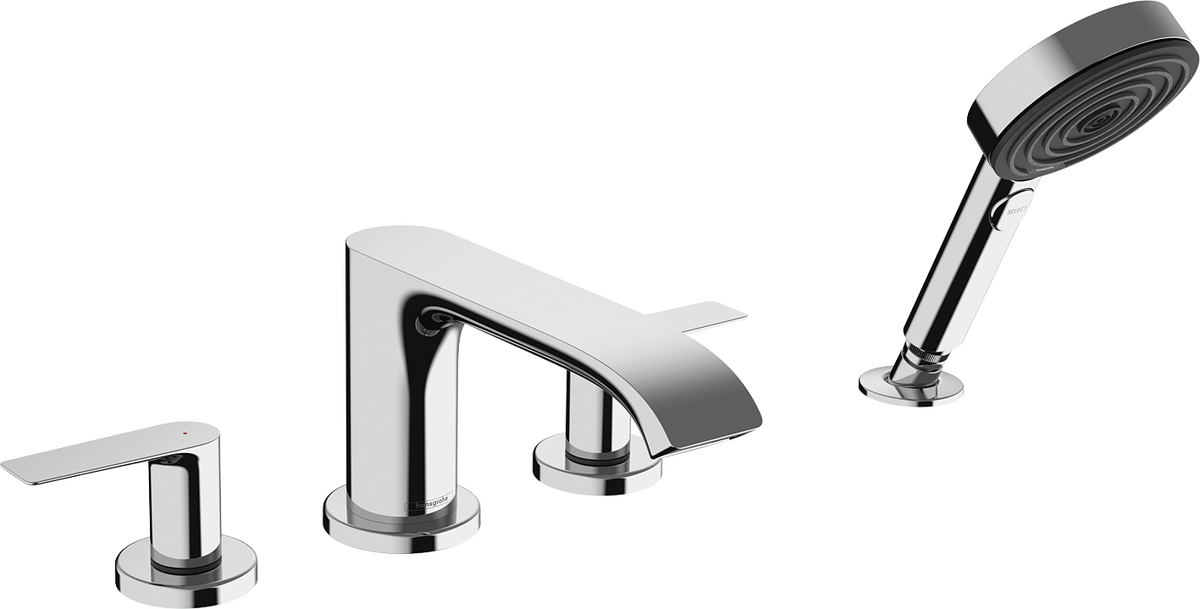

hansgrohe Vivenis4-Hole Roman Tub Set Trim with 1.8 GPM Handshower
Model no. 75443001
Product saved for 30 days.To the product comparison
The article could not be saved.
Please try again.
Please try again.
Article features
- Consists of: 4-hole rim mounted bath mixer, Handshower, Handshower holder
- Spray type mixer: WaterfallStream
- Spray type hand shower: PowderRain
- Maximum pull-out length of hand shower: 55 inches
- Flow rate of hand shower at 3 bar: 1.75 GPM (6.6 L/Min)
- Ceramic valves hot/cold 90°
- Installation on bath rim
Download Center
Planning data
Technical drawings
Instructions
Certificates
Required Accessories

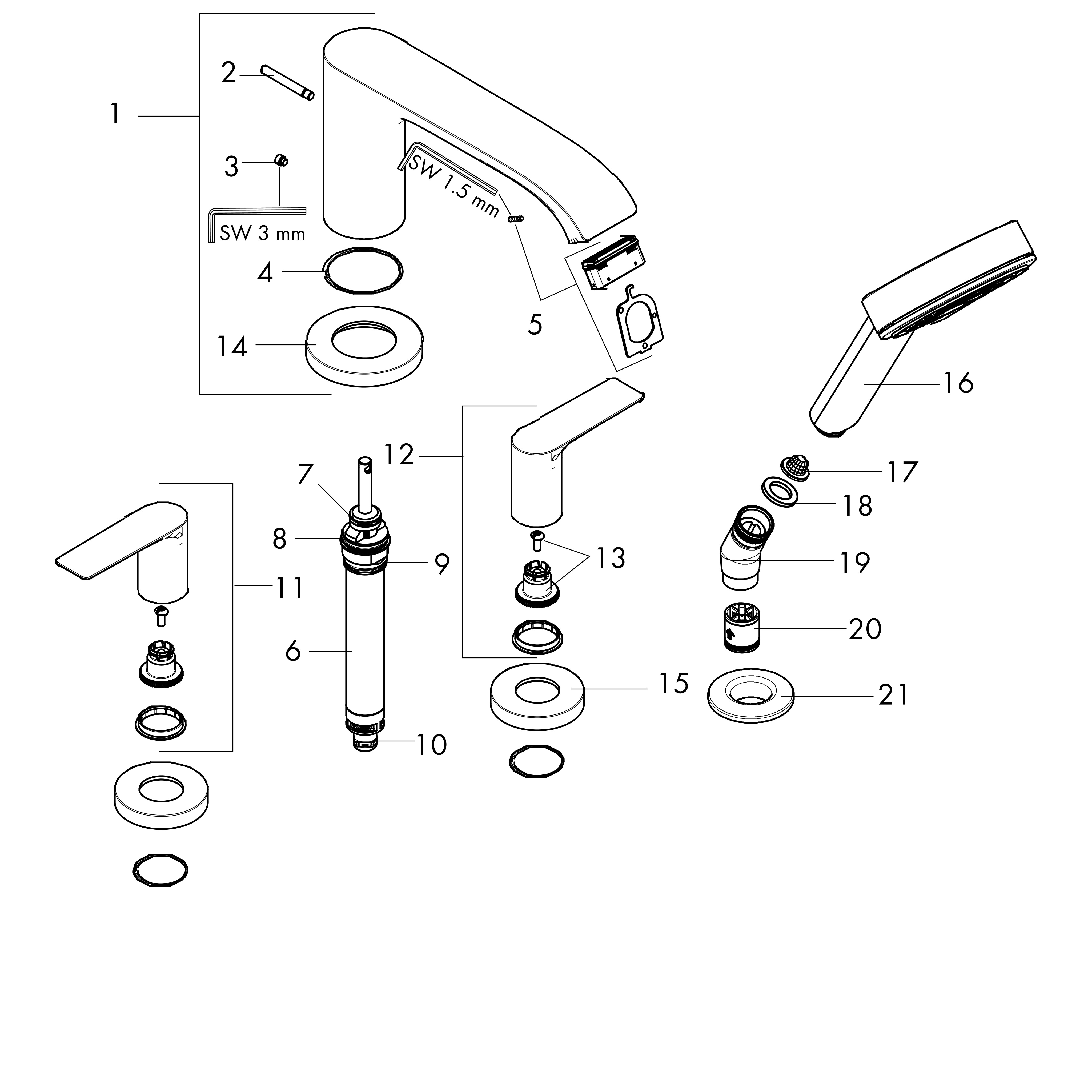

Spare parts for build year 11/21
| Item no. |
|---|

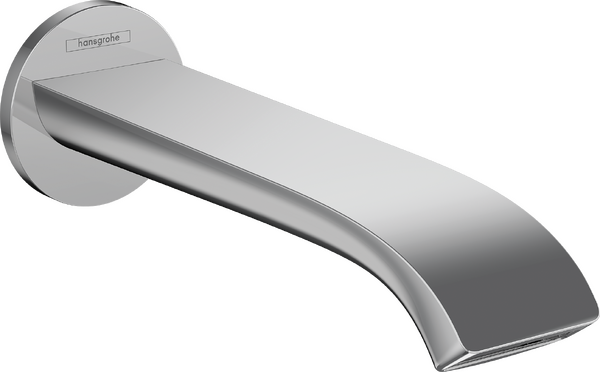

| 1 | spout cpl.94312000 |
| 2 | diverter knob98707000 |
| 3 | hollow set screw M6x697660000 |
| 4 | O-ring 41x1,598168000 |
| 5 | aerator cpl.93916000 |
| 6 | selector assy93589000 |
| 7 | O-Ring 14x2,598189000 |
| 8 | O-Ring 23x2,598183000 |
| 9 | O-Ring 22x298185000 |
| 10 | O-ring 9x2,598217000 |
| 11 | handle for hot water94310000 |
| 12 | handle for cold water94311000 |
| 13 | handle fixing set94184000 |
| 14 | escutcheon for spout93978000 |
| 15 | escutcheon for handle93976000 |
| 16 | 24112001 |
| 17 | filter92672000 |
| 18 | seal98058000 |
| 19 | shower holder28071000 |
| 20 | set of non return valves DW 1594074000 |
| 21 | escutcheon Ø 52 mm97159000 |
Innovative technologies
More pleasure, more efficiency
Mixes generous quantities of air into the water. The enriched droplets are luxurious, light and soothing on the skin and cause less splash in the wash basin. For a more efficient use of the precious resource that is water.
AirPower
More pleasure, more efficiency
Mixes generous quantities of air into the water. The enriched droplets are luxurious, light and soothing on the skin and cause less splash in the wash basin. For a more efficient use of the precious resource that is water.
Awards
Manufacturer’s guarantee
Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
We endeavour to always provide up-to-date, complete information on our website. However, we do not assume any liability for the suitability of the information for particular uses.
