AXOR EdgeThermostatic Trim for Exposed/Concealed Installation for 3 Functions - Diamond Cut
Model no. 46141001
Product saved for 30 days.To the product comparison
The article could not be saved.
Please try again.
Please try again.
Article features
- Outlets may be operated simultaneously
- Select push-button on/off control for 3 functions
- Thermostatic cartridge
- Flow: 1.75 GPM (6.6 L/Min)
- Flow rate by simultaneous use of all outlets: 1.75 GPM (6.6 L/Min)
- Anti-scald 100° safety stop
- Shelf color: frosted grey glass
- Trim comes with Select buttons: handshower, PowderRain, and Rain
Download Center
Planning data
Technical drawings
Instructions

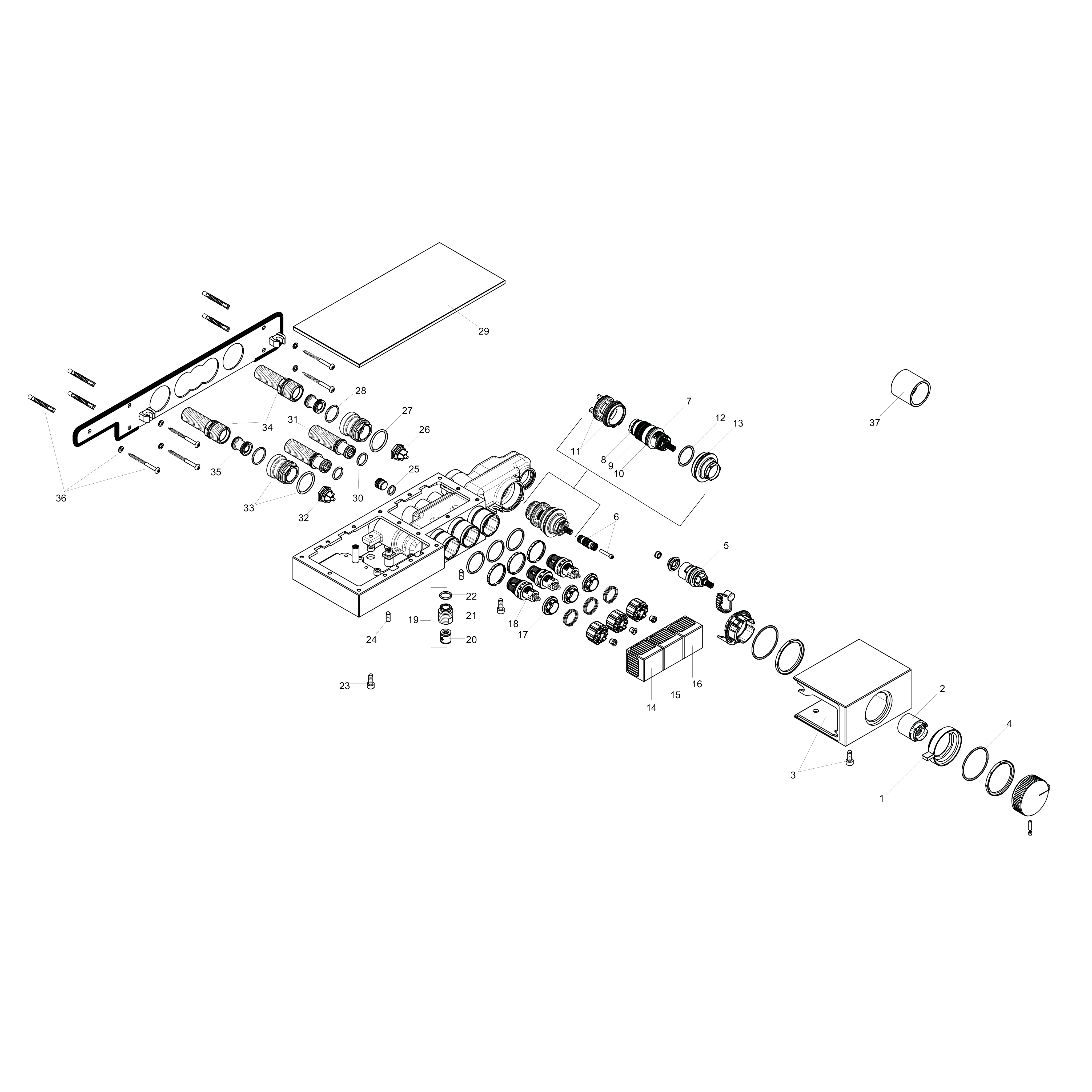

Spare parts for build year 01/20
| Item no. |
|---|
| a | handle for thermostat93610001 |
| 1 | handle93614000 |
| 2 | sleeve93613000 |
| 3 | cover93615000 |
| 4 | O-Ring 50x298187000 |
| 5 | shut off unit98536000 |
| 6 | adapter for handle93611000 |
| 7 | thermostat cartridge98282000 |
| 8 | O-ring 20x1,598197000 |
| 9 | O-ring 25x1,598146000 |
| 10 | O-ring 25x2,592146000 |
| 11 | O-ring 34x298383000 |
| 12 | O-ring 26x298147000 |
| 13 | O-ring 38x2,598198000 |
| 14 | symbol head shower Rain large93609000 |
| 15 | symbol head shower Rain small93608000 |
| 16 | symbol handshower93607000 |
| 17 | nut98368000 |
| 18 | shut off unit95758000 |
| 19 | Hose Connection96044000 |
| 20 | set of non return valves DW 1594074000 |
| 21 | connecting thread95392000 |
| 22 | O-ring 14x298129000 |
| 23 | hexagon socket screw M6x1692857000 |
| 24 | hollow set screw M6x16 including o-ring 29x398372000 |
| 25 | O-ring 11x298127000 |
| 26 | non return valve (pressure-resistant up to 2 MPa)95773000 |
| 27 | O-ring 29x398371000 |
| 28 | O-ring 23x298398000 |
| 29 | shelf93616000 |
| 30 | O-ring 15x2,598131000 |
| 31 | connecting thread93232000 |
| 32 | O-ring 17x298199000 |
| 33 | adapter for ball S - union02026000 |
| 34 | set of connecting threads93231000 |
| 35 | noise reduction96429000 |
| 36 | mounting set92841000 |
| 37 | fit-up aid93612000 |
Innovative technologies
Intuitive jet adjustment
The Select push button simplifies daily bathroom routines, as one simple push is all it takes for water to flow or stop. When showering, the user-friendly button can change the spray type or switch from the overhead to the hand shower.
