AXOR Edge

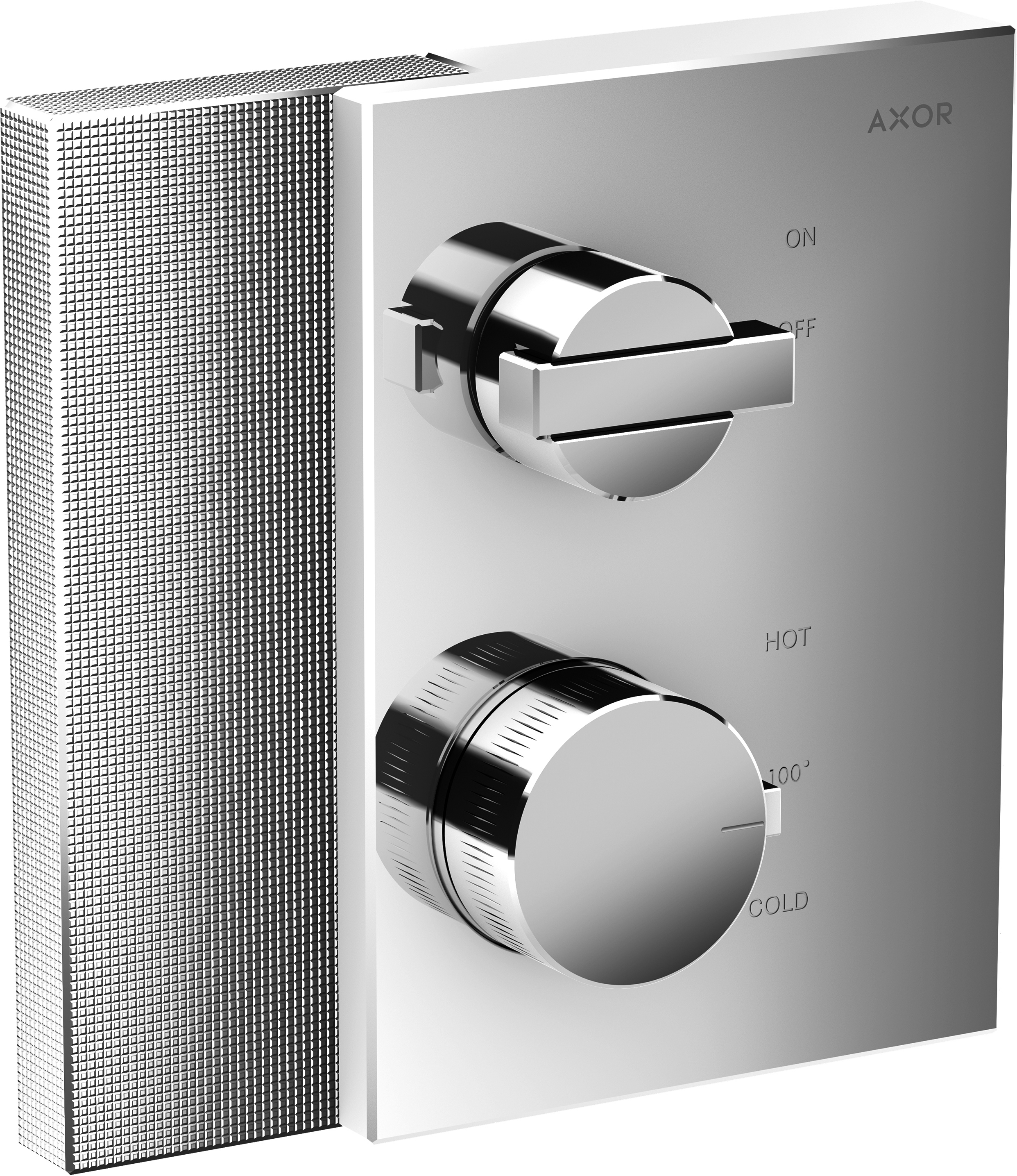

Thermostatic Trim with Volume Control - Diamond Cut

Thermostatic Trim with Volume Control - Diamond Cut
 View in AR
 360° view
Finish Chrome

Model no. 46751001

Article features

  • Volume control for 1 function
  • Thermostat cartridge, Ceramic cartridge
  • Maximum flow rate at 45 psi: 5.9 GPM
  • Maximum flow rate at 60 psi: 8.5 GPM
  • Safety stop at 100°F

Download Center

Planning data

Download all Planning data files

BIM data

Download all BIM data files

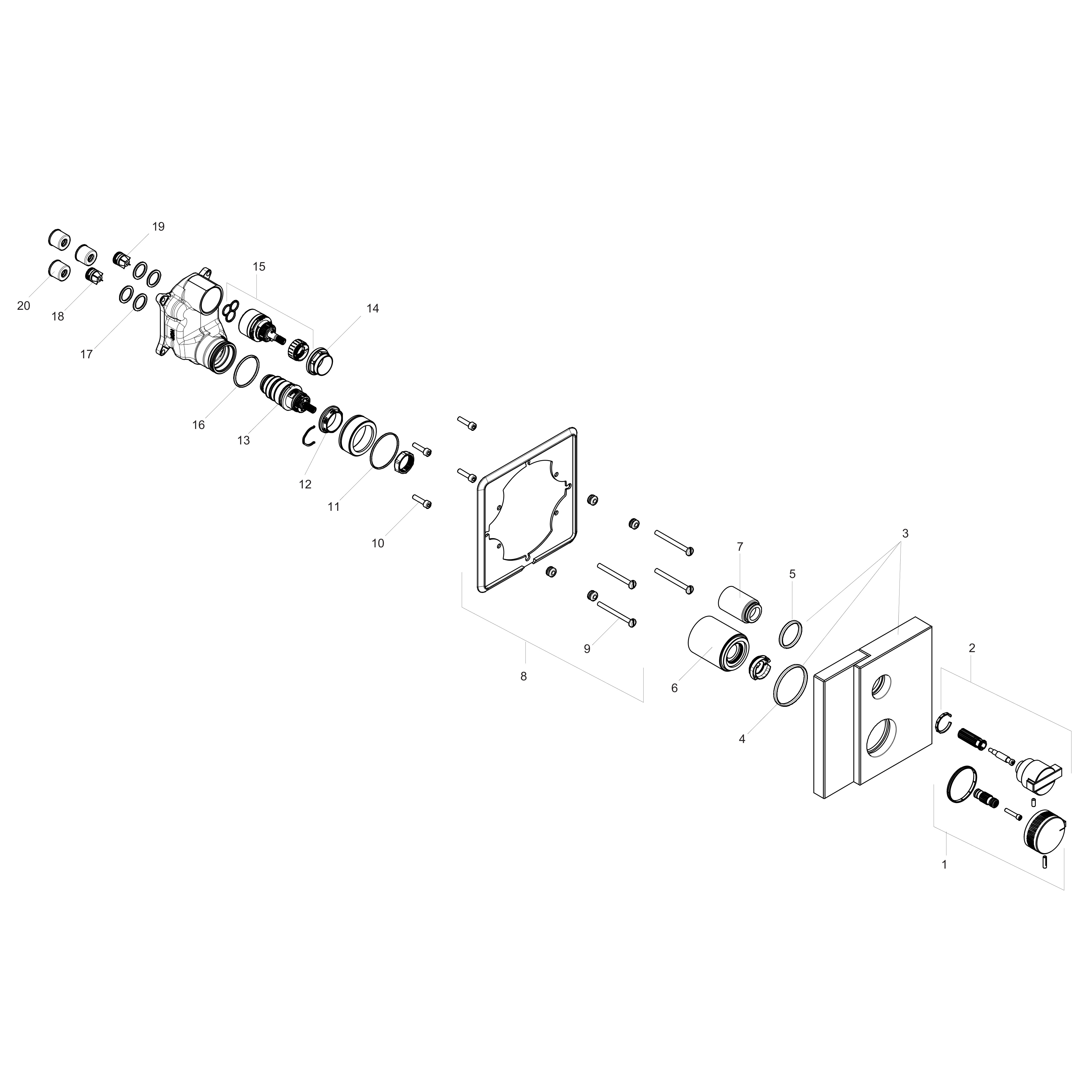

Technical drawings

Instructions

Download all files

Certificates

Minimum Advertised Price (MAP)

cUPC® Listed

 cUPC® Listed products comply with applicable sections of the Uniform Plumbing Code (UPC®), National Plumbing Code of Canada, and International Plumbing Code (IPC®), as well as applicable sections of IAPMO Z124.1.2-2005 / CSA B45.5-2002

Installation information

Scale drawing

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.
Information
Please note that other products are required to install the product.

Required Accessories

Rough, with Service Stops, ¾"
hansgrohe iBox universal

Rough, with Service Stops, ¾"

Optional Accessories

1" Extension Kit, iBox Universal Plus Rough
hansgrohe

1" Extension Kit, iBox Universal Plus Rough

Manufacturer’s guarantee

Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.



We endeavour to always provide up-to-date, complete information on our website. However, we do not assume any liability for the suitability of the information for particular uses.
