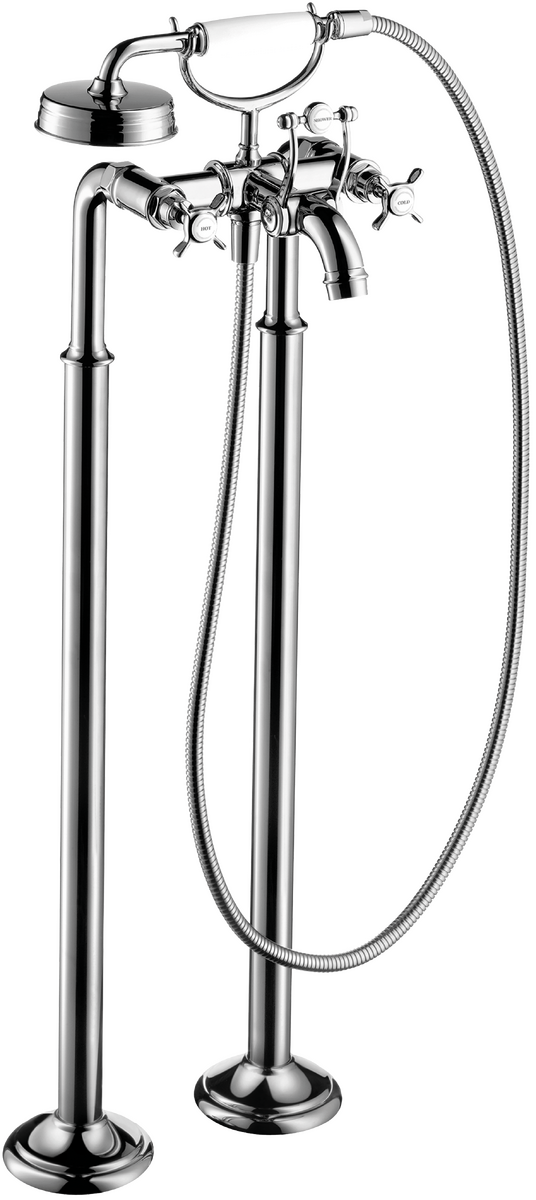

AXOR Montreux2-Handle Freestanding Tub Filler Trim with Cross Handles and 1.8 GPM Handshower

Model no. 16562001
Please try again.
Article features
- Spray type mixer: aerated spray
- Spray type hand shower: RainAir
- Flow: 4.76 GPM (18 L/Min)
- Flow rate of hand shower at 3 bar: 1.8 GPM (6.8 L/Min)
- Ceramic valves 90°
- Integrated double backflow prevention
- Deck mounted
Download Center
Technical drawings
Certificates

Installation information
Scale drawing
Information
Please always observe the safety and installation information for your product. You find these details within the assembly instructions.Information
Required Accessories
Spare parts for build year 01/19
To the spare parts catalogItem no. | DescriptionArticle no.Description and article no. |
---|
1 | handle16597000 |
2 | set of screw covers, cold / hot water / neutral97987000 |
3 | sleeve97993000 |
4 | aerator M22x1 (25 l/min)98575000 |
5 | shut off unit right closing94009000 |
6 | set of non return valves DW 1594074000 |
7 | selector98591000 |
8 | noise reduction96429000 |
9 | pillar union98856000 |
10 | sliding gear lever98594000 |
11 | O-ring 16x298133000 |
12 | shower base98590000 |
13 | handshower04695000 |
14 | shower hose 1,25 m28112000 |
15 | filter packing94246000 |
16 | connecting thread97220000 |
17 | O-ring 15x298163000 |
18 | seal98058000 |
19 | O-ring 5x298215000 |
20 | hexagon socket screw M10x3597670000 |
21 | O-ring 35x292604000 |
22 | O-ring 9x1,598117000 |
23 | O-ring 44x2,598162000 |
Innovative technologies
More pleasure, more efficiency
QuickClean: Less limescale, more pleasure
AirPower
More pleasure, more efficiency
Mixes generous quantities of air into the water. The enriched droplets are luxurious, light and soothing on the skin and cause less splash in the wash basin. For a more efficient use of the precious resource that is water.
QuickClean
QuickClean: Less limescale, more pleasure
Who likes cleaning? Limescale deposits and dirt disappear in an instant. You can rub off the flexible silicone lamellae or nubs with your finger. This takes no time at all and minimises the cleaning effort.
Spray Types
RainAir
Gentle droplets enriched with air from the luxurious shower rain feel silky soft on the skin for an indulgent shower. Additionally, this spray type is efficient and thorough enough to rinse out shampoo.
Manufacturer’s guarantee
Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
We endeavour to always provide up-to-date, complete information on our website. However, we do not assume any liability for the suitability of the information for particular uses.
You may also like

AXOR Montreux
Handshower 100 1-Jet, 1.8 GPM
Model no. 04695000

AXOR Montreux
Showerarm 15"
Model no. 04746000

AXOR Montreux
Handshower 100 1-Jet, 2.5 GPM
Model no. 16320001

AXOR Montreux
Handshower Holder
Model no. 16325000

AXOR Montreux

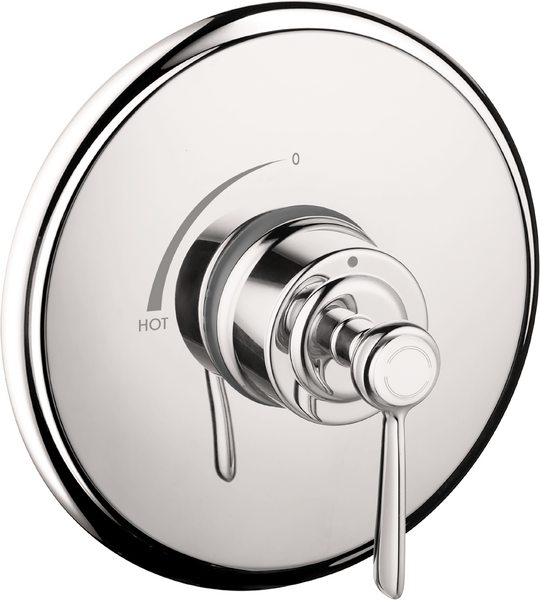

Pressure Balance Trim
