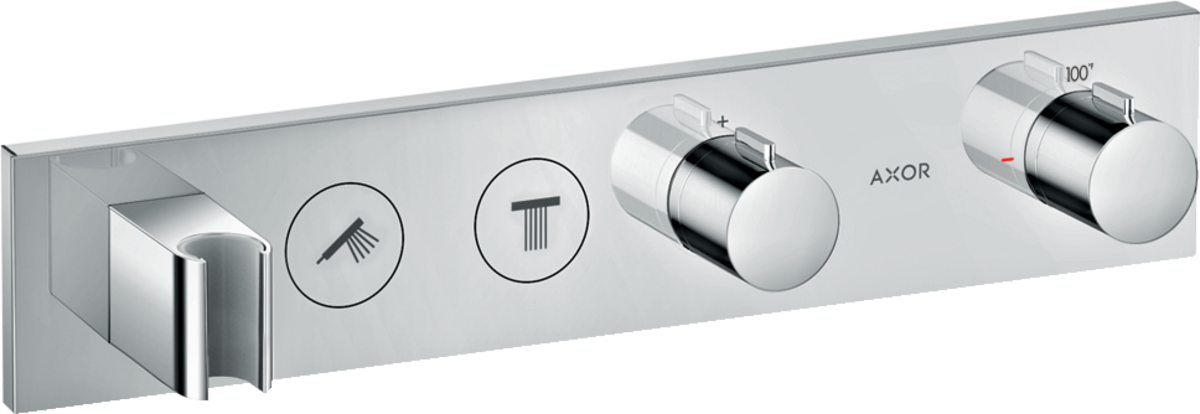

AXOR ShowerSolutionsThermostatic Module Trim Select for 2 Functions
View in AR
360° view
{{points}}
Secure your talismans for this product.
Model no. 18355001
As of
Discount Group {0}
Excluding VAT
List price (U.S. dollars) is shown for comparison only. The actual retail price may be different from the price shown.
Remember product
Product noted
Product saved for 30 daysSee Wish List
The product could not be saved. Please try again.
Compare products
Product added
Product saved for 30 days.To the product comparison
The article could not be saved.
Please try again.
Please try again.
Article features
- Consists of: Thermostatic Module Trim, Handshower holder
- Outlets may be operated simultaneously
- Select push-button on/off control for 2 outlets
- Thermostatic cartridge, Start/stop cartridge
- Flow with Restrictor: 1.75 GPM (6.6 L/Min)
- Flow without Restrictor: 5.7 GPM (21.5 L/Min)
- Anti-scald 100° safety stop
- For shower hoses with a conical nut
- Thermostat is delivered with buttons Rain large and hand shower
Download Center
Planning data
Technical drawings
Instructions
Installation information
Scale drawing
Information
Please always observe the safety and installation information for your product. You find these details within the assembly instructions.Information
Required Accessories
Spare parts for build year 01/20
To the spare parts catalogItem no. | DescriptionArticle no.Description and article no. |
---|
a | symbol tub93335000 |
e | symbol PowderRain inside93311000 |
d | symbol Mono93310000 |
b | symbol body shower93334000 |
c | symbol Flood jet93309000 |
f | symbol PowderRain outside93312000 |
g | symbol Whirl93413000 |
1 | handle93313000 |
2 | safety set93337000 |
3 | safety set93338000 |
4 | shower holder, assy93114000 |
5 | hollow set screw M4x897669000 |
6 | symbol head shower93308000 |
7 | symbol handshower93307000 |
8 | cover93322000 |
9 | O-ring 38x2,598198000 |
10 | adapter for handle93109000 |
11 | adapter for handle93315000 |
12 | mounting kit93102000 |
13 | connecting thread G½98933000 |
14 | O-ring 11x298127000 |
15 | support element93330000 |
16 | support element93314000 |
17 | escutcheon93326000 |
18 | O-ring 20x298165000 |
19 | thermostat cartridge98282000 |
20 | non return valve96655000 |
21 | shut off unit98536000 |
22 | Select-adapter93103000 |
23 | nut98368000 |
24 | shut off unit95758000 |
25 | fit-up aid92540000 |
26 | adapter for symbol93398000 |
27 | fit-up aid93487000 |
28 | guide (conical)94163000 |
29 | service unit93406000 |
30 | Select-adapter94806000 |
Innovative technologies
Intuitive jet adjustment
The Select push button simplifies daily bathroom routines, as one simple push is all it takes for water to flow or stop. When showering, the user-friendly button can change the spray type or switch from the overhead to the hand shower.
Select
Intuitive jet adjustment
The Select push button simplifies daily bathroom routines, as one simple push is all it takes for water to flow or stop. When showering, the user-friendly button can change the spray type or switch from the overhead to the hand shower.
Manufacturer’s guarantee
Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
We endeavour to always provide up-to-date, complete information on our website. However, we do not assume any liability for the suitability of the information for particular uses.
