AXOR StarckHighArc Kitchen Faucet 2-Spray Pull-Down, 1.75 GPM

Model no. 10821001
Please try again.
Article features
- Swivel range 150°
- Laminar spray, needle spray
- Toggle spray diverter
- MagFit magnetic sprayhead docking
- Deck mounted
- Flow: 1.75 GPM (6.6 L/Min)
- Joystick ceramic cartridge
- ⅜" connections
- Integrated double backflow prevention
- Extension length up to 19 5/8” (50cm)
- EPD_20230024_Kitchen_faucets
Download Center
BIM data
Technical drawings
Certificates


Installation information
Information
Please always observe the safety and installation information for your product. You find these details within the assembly instructions.Optional Accessories
Spare parts for build year 05/21
To the spare parts catalogItem no. | DescriptionArticle no.Description and article no. |
---|
1 | spout cpl.95907000 |
2 | set of lever collars98365000 |
3 | O-ring 21x2,598211000 |
4 | filter97735000 |
5 | non return valve93218000 |
6 | O-ring 18x1,598231000 |
7 | O-ring 20x198140000 |
8 | flange97155000 |
9 | handle95893000 |
10 | nut97157000 |
11 | O-Ring 30x298186000 |
12 | cartridge, assy96339000 |
13 | flat seal98749000 |
14 | support97523000 |
15 | fixing set (Ø 34)95049000 |
16 | hose 1,50 m88624000 |
17 | weight98551000 |
18 | connection hose 600 mm M10x195561000 |
19 | O-ring 8x1,7597827000 |
20 | connection hose 35½" M8x0,75 3/8"96316001 |
21 | O-ring 7x1,598422000 |
22 | lever collar97548000 |
23 | set of non return valves DW 1597350000 |
24 | service tool95910000 |
25 | aerator laminar M22x1 (15 l/min)95909000 |
26 | handspray95908001 |
Innovative technologies
Saving resources with pleasure
Flexibility at the kitchen sink
QuickClean: Less limescale, more pleasure
EcoRight
Saving resources with pleasure
hansgrohe standard taps are equipped with our EcoSmart technology to save water and energy – since 2010. While enjoying the full water experience, it consumes max. 5 l/min. Good for a conscious consumption of water and energy.
Pull-out
Flexibility at the kitchen sink
More comfort and room to move: Pull-out sprays or pull-out spouts expand the operating radius around the kitchen sink to take water to exactly where it’s needed in just one motion.
QuickClean
QuickClean: Less limescale, more pleasure
Who likes cleaning? Limescale deposits and dirt disappear in an instant. You can rub off the flexible silicone lamellae or nubs with your finger. This takes no time at all and minimises the cleaning effort.
Spray Types


LaminarSpray
Crystal-clear spray type with no added air for the sink. This spray is a great help when going through the day-to-day kitchen routine, e.g. quickly filling large pots or bowls. Efficient with very little splashback.

ShowerSpray
Resource-saving shower spray at the sink. Whether fruit or vegetables, fish or meat, the soft spray helps to gently yet efficiently clean food and other items.

Manufacturer’s guarantee
Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
We endeavour to always provide up-to-date, complete information on our website. However, we do not assume any liability for the suitability of the information for particular uses.
Similar products

AXOR Starck
Bar Faucet, 1.5 GPM
Model no. 10826001

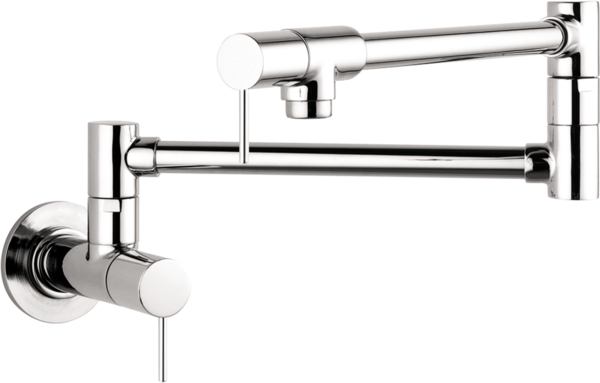

AXOR Starck
Pot Filler, Wall-Mounted
Model no. 10859001
You may also like

AXOR Starck
Baton Handshower 2-Jet, 1.75 GPM
Model no. 04486000

AXOR Starck
Single-Hole Faucet 250, 1.2 GPM
Model no. 10103001

AXOR Starck
Single-Hole Faucet 170, 1.2 GPM
Model no. 10123001

AXOR Starck
Single-Hole Faucet 250, 1.2 GPM
Model no. 10129001

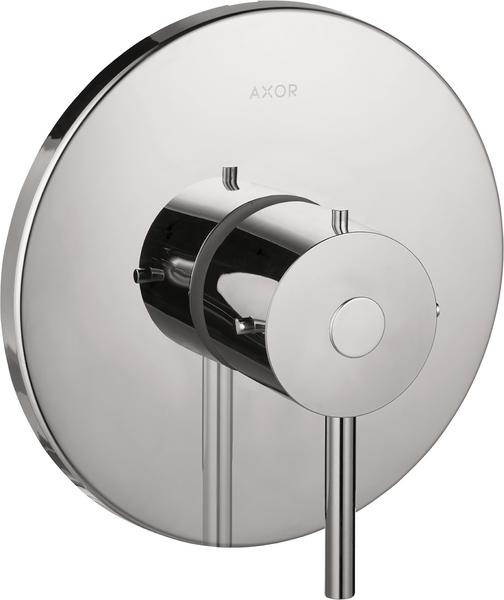

AXOR Starck
