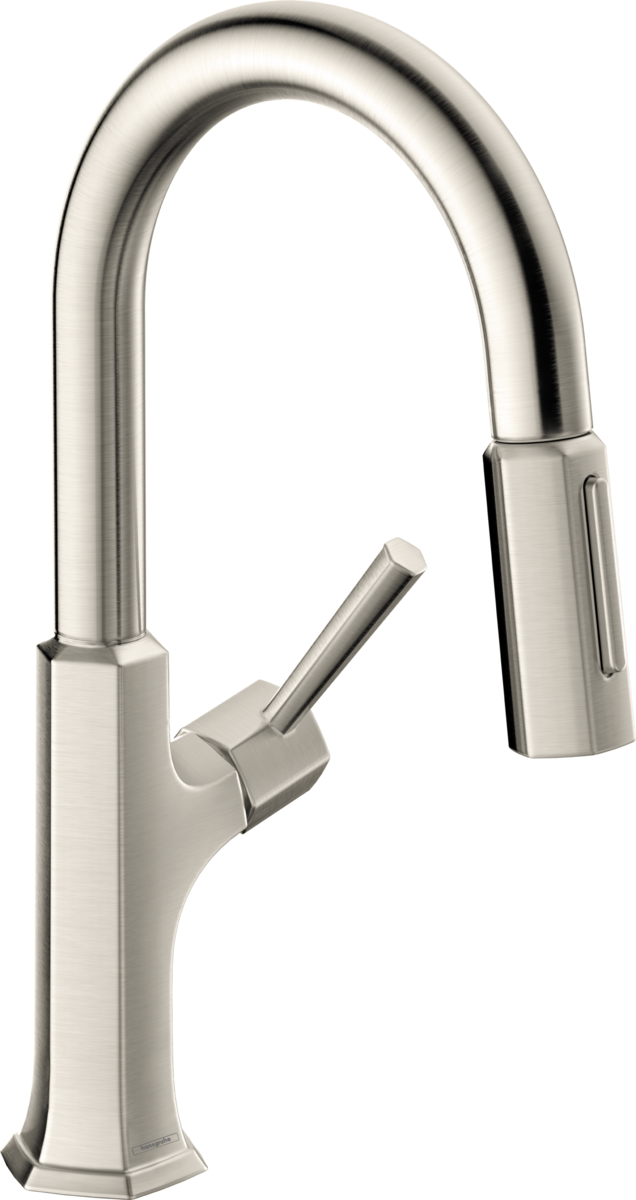

hansgrohe LocarnoPrep Kitchen Faucet, 2-Spray Pull-Down, 1.75 GPM

Model no. 04853800
Please try again.
Article features
- Swivel range 150°
- Normal spray, needle spray
- Toggle spray diverter
- MagFit magnetic sprayhead docking
- Deck mounted
- Flow: 1.75 GPM (6.6 L/Min)
- Ceramic cartridge
- Integrated double backflow prevention
Download Center
Planning data
Technical drawings
Instructions
Certificates

Installation information
Scale drawing
Information
Please always observe the safety and installation information for your product. You find these details within the assembly instructions.Spare parts for build year 03/21
To the spare parts catalogItem no. | DescriptionArticle no.Description and article no. |
---|
1 | spout cpl.93159800 |
2 | filter97735000 |
3 | handspray93887801 |
4 | set of non return valves DW 1594074000 |
5 | non return valve93218000 |
6 | spray former93342001 |
7 | service tool95910000 |
8 | handle93885800 |
9 | hollow set screw M6x897810000 |
10 | screw cover95704000 |
11 | flange98863800 |
12 | nut93886000 |
13 | cartridge, assy95973001 |
14 | seal98865000 |
15 | hose93744000 |
16 | hose 1,50 m88624000 |
17 | O-ring 11x298127000 |
18 | weight98551000 |
19 | fixing set (special)93253000 |
20 | lever collar97548000 |
21 | support97523000 |
22 | seal92582000 |
23 | connection hose 35½" M8x0,75 3/8"96316001 |
24 | set of lever collars98365000 |
25 | O-ring 21x2,598211000 |
Innovative technologies
Flexibility at the kitchen sink
QuickClean: Less limescale, more pleasure
Pull-out
Flexibility at the kitchen sink
More comfort and room to move: Pull-out sprays or pull-out spouts expand the operating radius around the kitchen sink to take water to exactly where it’s needed in just one motion.
QuickClean
QuickClean: Less limescale, more pleasure
Who likes cleaning? Limescale deposits and dirt disappear in an instant. You can rub off the flexible silicone lamellae or nubs with your finger. This takes no time at all and minimises the cleaning effort.
Spray Types


ShowerSpray
Resource-saving shower spray at the sink. Whether fruit or vegetables, fish or meat, the soft spray helps to gently yet efficiently clean food and other items.

NormalSpray
Air-enriched water spray with a really nice feel. Air is mixed in to create a fuller, lighter and softer spray that is an efficient help with every activity at the kitchen sink.

Manufacturer’s guarantee
Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
We endeavour to always provide up-to-date, complete information on our website. However, we do not assume any liability for the suitability of the information for particular uses.
