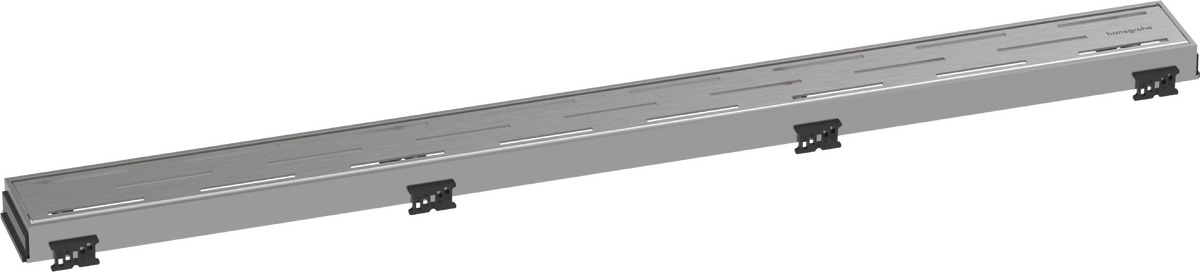

hansgrohe RainDrain Match RegularTrim Classic for 31 1/2" Rough with Height Adjustable Frame
Model no. 56120801
Product saved for 30 days.To the product comparison
The article could not be saved.
Please try again.
Please try again.
Article features
- Consists of: design grate, height adjustable frame, wall installation flange, hair catcher
- Mounting type: wall-mounted, free in the floor
- Easy to clean surface
- Easy adjustment to tile thickness with height adjustable frame (1/4” – 3/4”)
- Tile thickness: up to 1 1/2”
- Suitable for any type of tile
- Up to 15.85 GPM drainage capacity
- Where to use: new construction, renovation
- Grate removal tool allows easy removal of the drain set
- Type of odor seal: mechanical
- Wall mounting possible
- Tile inlay depth: 1/2”
- Grate material: Stainless Steel 304 (1.4301)
- Suitable for primary and secondary drainage
- Frame width: 2 1/2”
Download Center
Planning data
Technical drawings
Instructions
Required Accessories
Innovative technologies
Easy to clean surface
At some point, dirt and hair will build up in every shower drain. This high-quality linear drain is easy to clean: simply take off the cover using the tool provided and remove any residue in no time at all.
For a flush integration into the floor
The shower drain is installed flush with the tiles. The level of the grate can be adjusted to different heights by using the height adjustment frame (Tile thickness 7-18 mm) even after the screed has been poured.
QuickClean
Easy to clean surface
At some point, dirt and hair will build up in every shower drain. This high-quality linear drain is easy to clean: simply take off the cover using the tool provided and remove any residue in no time at all.
Adjustable frame height
For a flush integration into the floor
The shower drain is installed flush with the tiles. The level of the grate can be adjusted to different heights by using the height adjustment frame (Tile thickness 7-18 mm) even after the screed has been poured.
Manufacturer’s guarantee
Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
