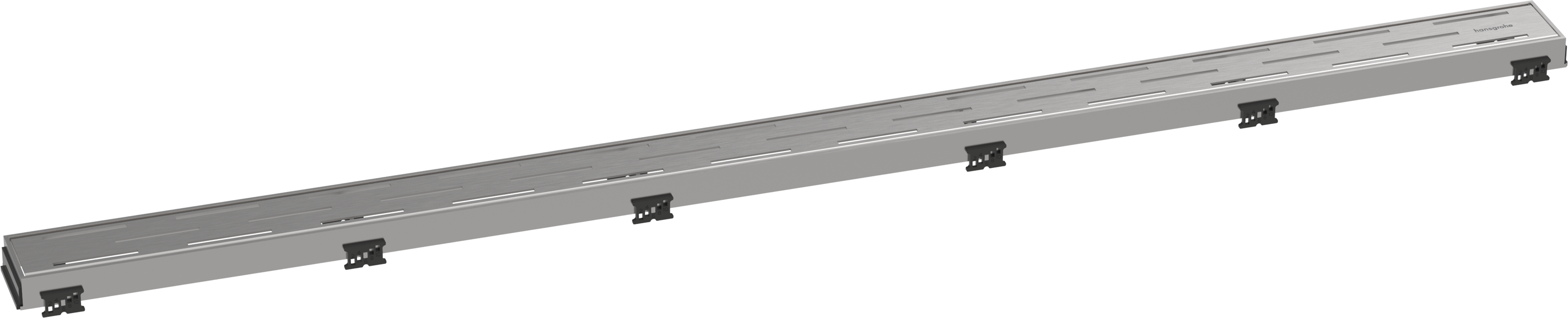

hansgrohe RainDrain Match RegularTrim Classic for 47 1/4" Rough with Height Adjustable Frame
NEW
Model no. 56126801
Product saved for 30 days.To the product comparison
The article could not be saved.
Please try again.
Please try again.
Article features
- Consists of: design trim, height adjustable frame, wall installation flange, hair catcher sieve
- Mounting type: wall-mounted, free in the floor
- Easy to clean surface
- Easy adjustment to tile thickness with height adjustable frame (0.27– 0.7")
- Floor thickness: up to 1.57"
- Suitable for any type of tile
- Up to 60 l/min drainage capacity
- Where to use: new construction, renovation
- Grate removal tool allows easy removal of the trim
- Wall mounting possible
- tile inlay depth: 0.47"
- Grate material: Stainless Steel 304 (1.4301)
- Suitable for primary and secondary drainage
- Frame width: 2.44"
Download Center
Technical drawings
Required Accessories
Innovative technologies
For a flush integration into the floor
The shower drain is installed flush with the tiles. The level of the grate can be adjusted to different heights by using the height adjustment frame (Tile thickness 7-18 mm) even after the screed has been poured.
Easy to clean surface
At some point, dirt and hair will build up in every shower drain. This high-quality linear drain is easy to clean: simply take off the cover using the tool provided and remove any residue in no time at all.
Adjustable frame height
For a flush integration into the floor
The shower drain is installed flush with the tiles. The level of the grate can be adjusted to different heights by using the height adjustment frame (Tile thickness 7-18 mm) even after the screed has been poured.
QuickClean
Easy to clean surface
At some point, dirt and hair will build up in every shower drain. This high-quality linear drain is easy to clean: simply take off the cover using the tool provided and remove any residue in no time at all.
