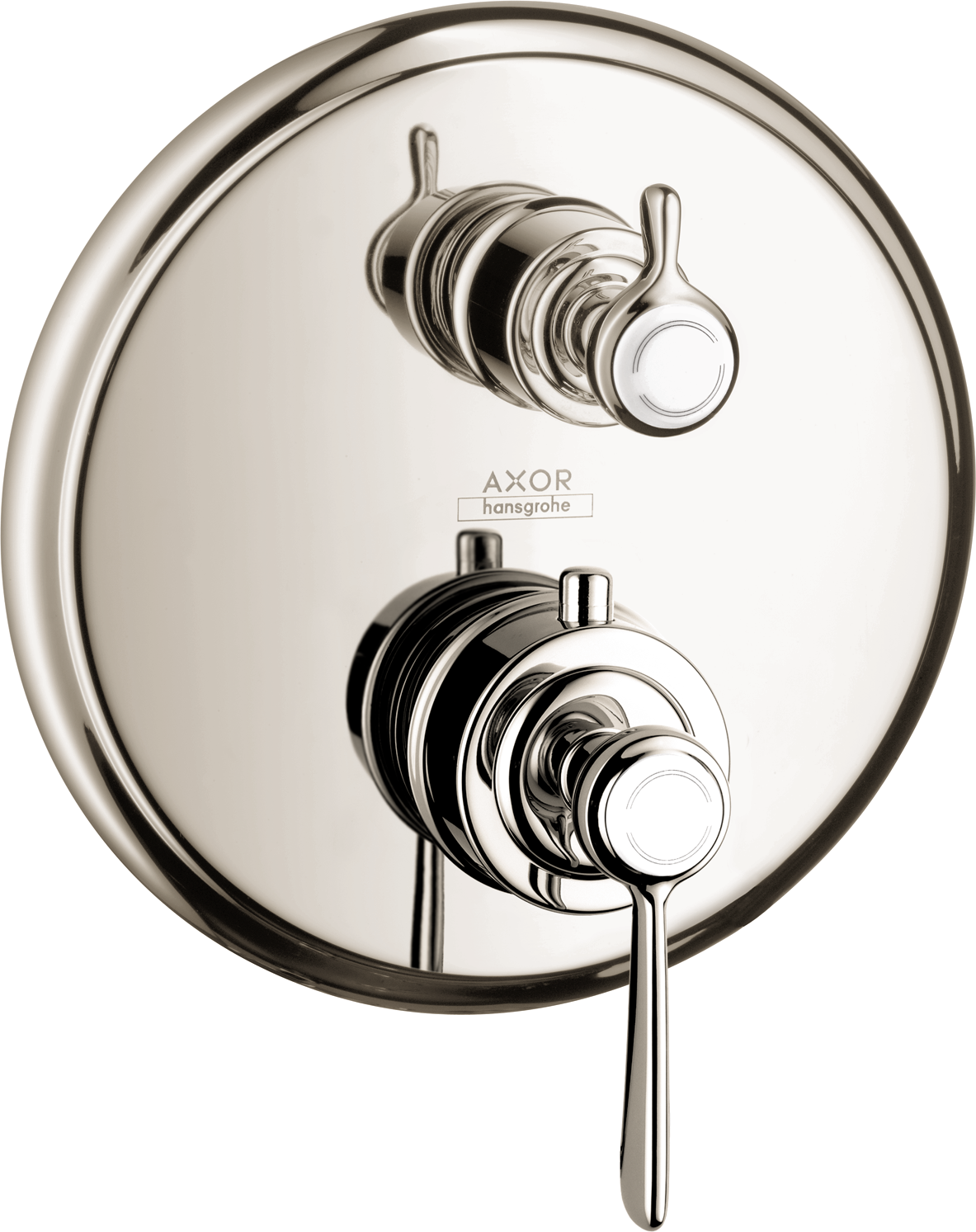

AXOR MontreuxThermostatic Trim with Volume Control
Model no. 16801831
Product saved for 30 days.To the product comparison
The article could not be saved.
Please try again.
Please try again.
Article features
- Volume control for 1 function
- Thermostatic cartridge, Ceramic cartridge
- Flow: 6.0 GPM (22.7 L/Min)
- Anti-scald 100° safety stop
Download Center
Planning data
Technical drawings
Instructions
Required Accessories
Spare parts for build year 08/13
| Item no. |
|---|
| 1 | handle for thermostat16694831 |
| 2 | hollow set screw M5x1697666000 |
| 3 | pushbutton97792830 |
| 4 | O-ring 16x298133000 |
| 5 | cover cap95991000 |
| 6 | adapter for handle96435000 |
| 7 | sleeve96439830 |
| 8 | thermostat cartridge94282000 |
| 9 | sealing set95037000 |
| 10 | handle98637830 |
| 11 | hollow set screw M4x897669000 |
| 12 | adapter for handle96451000 |
| 13 | sleeve96446830 |
| 14 | shut off unit right closing94009000 |
| 15 | escutcheon98668830 |
| 16 | O-ring 29x398371000 |
| 17 | O-Ring 48x395508000 |
| 18 | sub plate96447000 |
| 19 | set of fixing screws96454000 |
| 20 | set of screws96525000 |
| 21 | set of non return valves DW 1594074000 |
| 22 | noise reduction94073000 |
| 23 | extension 22 mm (Ø 170 mm)13596830 |
| 24 | extension 25 mm13595000 |
